Filters1

Liquid Aluminum Electrolytic

Clear All Filters

Found 2,613 resultsDefaultVoltage Low to HighCapacity Low to HighLife High to Low

Compare	Product Image	Package Form	Part Number	Series	Lifecycle Status	Polarity	Rated Voltage (V)	Nominal Cap.	Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	tanδ Frequency (Hz)	Dimension D (mm)	Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Terminal Type	Weight	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
		Snap-in	CW3H2I151M3035S2NNYXX	CW3H	Mass Production	Polarized	550 V	150 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	1317 mΩ	120 Hz	1060 mArms	862 µA	0.2	—	30 mm	35 mm	10 mm	Tin plating	S2	0 g	144	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	✓		Apply
		Snap-in	SW32W122M3580S2NNYXX	SW3	Mass Production	Polarized	450 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	79 mΩ	120 Hz	2650 mArms	2205 µA	0.15	—	35 mm	80 mm	10 mm	Tin plating	S2	0 g	50	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW3H2W331M3030SSNNYXX	CW3H	Mass Production	Polarized	450 V	330 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	449 mΩ	120 Hz	1180 mArms	1156 µA	0.2	—	30 mm	30 mm	10 mm	Tin plating	S2	0 g	216	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	✓		Apply
		Bolt Type	EW31K223M51A5M5YNYXX	EW3	Mass Production	Polarized	80 V	22000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	6.3 mΩ	120 Hz	4100 mArms	3980 µA	0.15	—	51 mm	105 mm	22 mm	Tin plating	M5	0 g	40	Wide Temperature Stability,High Capacitance Range,Low Leakage Current,High Ripple Current Capability	—		Apply
		Snap-in	SW31J472M2550S2NNYXX	SW3	Mass Production	Polarized	63 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	52 mΩ	120 Hz	2820 mArms	1632 µA	0.2	—	25 mm	50 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	ES32G152M5180M5YNYXX	ES3	Mass Production	有极性	400 V	1500 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	57 mΩ	120 Hz	2420 mArms	2324 µA	0.18	—	51 mm	80 mm	22 mm	镀锡	M5	0 g	40	—	—	—	Apply
		Snap-in	CW32W391M3530S2NNYXX	CW3	Mass Production	Polarized	450 V	390 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	442 mΩ	120 Hz	1350 mArms	1257 µA	0.2	—	35 mm	30 mm	10 mm	Tin plating	S2	0 g	150	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW32D182M3050S2NNYXX	SW3	Mass Production	Polarized	200 V	1800 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	108 mΩ	120 Hz	2510 mArms	1800 µA	0.15	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G102M3570S2NNYXX	SW3	Mass Production	Polarized	400 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	85 mΩ	120 Hz	2880 mArms	1897 µA	0.15	—	35 mm	70 mm	10 mm	Tin plating	S2	0 g	50	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply

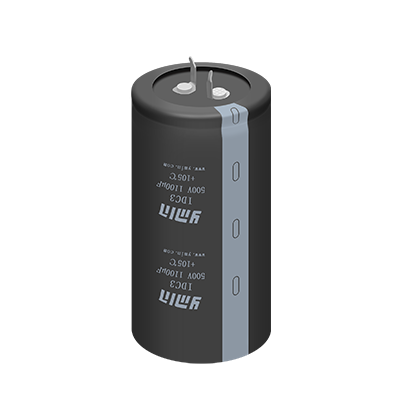

		Snap-in	IDC32W142M3070S2NNYXX	IDC3	Mass Production	Polarized	450 V	1400 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	215 mΩ	120 Hz	2750 mArms	2381 µA	0.2	—	30 mm	70 mm	10 mm	Tin plating	S2	0 g	72	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW32G152M3560S2NNYXX	SW3	Mass Production	Polarized	400 V	1500 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	52 mΩ	120 Hz	2890 mArms	2324 µA	0.15	—	35 mm	60 mm	10 mm	Tin plating	S2	0 g	50	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW32W102M3550S2NNYXX	CW3	Mass Production	Polarized	450 V	1000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	172 mΩ	120 Hz	2480 mArms	2012 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW32G152M3580S4NNYXX	SW3	Mass Production	Polarized	400 V	1500 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	52 mΩ	120 Hz	3130 mArms	2324 µA	0.15	—	35 mm	80 mm	10 mm	Tin plating	S4	0 g	50	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G182M4090S4NNYXX	SW3	Mass Production	Polarized	400 V	1800 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	46 mΩ	120 Hz	4110 mArms	2546 µA	0.15	—	40 mm	90 mm	10 mm	Tin plating	S4	0 g	40	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62D221M2520S2NNYXX	SW6	Mass Production	有极性	200 V	220 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	905 mΩ	120 Hz	670 mArms	629 µA	0.15	—	25 mm	20 mm	10 mm	镀锡	S2	0 g	312	—	—	—	Apply
		Snap-in	SW32G222M4090S4NNYXX	SW3	Mass Production	Polarized	400 V	2200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	38 mΩ	120 Hz	4540 mArms	2814 µA	0.15	—	40 mm	90 mm	10 mm	Tin plating	S4	0 g	40	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32T471M3045S2NNYXX	SW3	Mass Production	Polarized	420 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	344 mΩ	120 Hz	1730 mArms	1333 µA	0.15	—	30 mm	45 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32T681M3550S2NNYXX	SW3	Mass Production	Polarized	420 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	238 mΩ	120 Hz	2290 mArms	1603 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32E681M3035S2NNYXX	SW3	Mass Production	Polarized	250 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	291 mΩ	120 Hz	1640 mArms	1237 µA	0.15	—	30 mm	35 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	EW32W102M5170M5YNYXX	EW3	Mass Production	Polarized	450 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	82 mΩ	120 Hz	2410 mArms	2012 µA	0.15	—	51 mm	70 mm	22 mm	Tin plating	M5	0 g	40	Wide Temperature Stability,High Capacitance Range,Low Leakage Current,High Ripple Current Capability	—		Apply
		Snap-in	SW32E152M3545S2NNYXX	SW3	Mass Production	Polarized	250 V	1500 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	132 mΩ	120 Hz	2420 mArms	1837 µA	0.15	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW3S2G221M2235S2NNYXX	CW3S	Mass Production	Polarized	400 V	220 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	723 mΩ	120 Hz	880 mArms	890 µA	0.2	—	22 mm	35 mm	8.4 mm	Tin plating	S2	0 g	270	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	IDC32W122M3065S2NNYXX	IDC3	Mass Production	Polarized	450 V	1200 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	252 mΩ	120 Hz	2370 mArms	2205 µA	0.2	—	30 mm	65 mm	10 mm	Tin plating	S2	0 g	72	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	CW62H391M3550S2NNYXX	CW6	Mass Production	Polarized	500 V	390 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	442 mΩ	120 Hz	1440 mArms	1325 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	CW62Y471M3570S2NNYXX	CW6	Mass Production	Polarized	630 V	470 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	321 mΩ	120 Hz	2290 mArms	1632 µA	0.2	—	35 mm	70 mm	10 mm	Tin plating	S2	0 g	50	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32W181M2525S2NNYXX	SW3	Mass Production	Polarized	450 V	180 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	467 mΩ	120 Hz	690 mArms	854 µA	0.15	—	25 mm	25 mm	10 mm	Tin plating	S2	0 g	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W181M2535S2NNYXX	SW3	Mass Production	Polarized	450 V	180 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	467 mΩ	120 Hz	740 mArms	854 µA	0.15	—	25 mm	35 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	ES32H122M51B5M5YNYXX	ES3	Mass Production	有极性	500 V	1200 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	101 mΩ	120 Hz	2530 mArms	2324 µA	0.18	—	51 mm	115 mm	22 mm	镀锡	M5	0 g	40	—	—	—	Apply
		Snap-in	SW32W221M2535S2NNYXX	SW3	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	306 mΩ	120 Hz	820 mArms	944 µA	0.15	—	25 mm	35 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32E471M3520S2NNYXX	SW3	Mass Production	Polarized	250 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	421 mΩ	120 Hz	1430 mArms	1028 µA	0.15	—	35 mm	20 mm	10 mm	Tin plating	S2	0 g	150	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32A472M3050S2NNYXX	SW3	Mass Production	Polarized	100 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	55 mΩ	120 Hz	3850 mArms	2057 µA	0.2	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W221M3035S2NNYXX	SW3	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	306 mΩ	120 Hz	890 mArms	944 µA	0.15	—	30 mm	35 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W221M3525S2NNYXX	SW3	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	306 mΩ	120 Hz	890 mArms	944 µA	0.15	—	35 mm	25 mm	10 mm	Tin plating	S2	0 g	150	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G331M2535S2NNYXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	242 mΩ	120 Hz	1420 mArms	1090 µA	0.15	—	25 mm	35 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G681M3535S2NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2140 mArms	1565 µA	0.15	—	35 mm	35 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62G681M3050S2NNYXX	CW6	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	215 mΩ	120 Hz	2090 mArms	1565 µA	0.2	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32W221M3530S2NNYXX	SW3	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	306 mΩ	120 Hz	930 mArms	944 µA	0.15	—	35 mm	30 mm	10 mm	Tin plating	S2	0 g	150	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62E821M3530S2NNYXX	CW6	Mass Production	Polarized	250 V	820 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	250 mΩ	120 Hz	1850 mArms	1358 µA	0.2	—	35 mm	30 mm	10 mm	Tin plating	S2	0 g	150	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32W271M2250S2NNYXX	SW3	Mass Production	Polarized	450 V	270 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	275 mΩ	120 Hz	1020 mArms	1046 µA	0.15	—	22 mm	50 mm	8.4 mm	Tin plating	S2	0 g	270	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W331M2545S2NNYXX	SW3	Mass Production	Polarized	450 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	245 mΩ	120 Hz	1160 mArms	1156 µA	0.15	—	25 mm	45 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62W391M3545S2NNYXX	CW6	Mass Production	Polarized	450 V	390 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	408 mΩ	120 Hz	1550 mArms	1257 µA	0.2	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32W331M3040S2NNYXX	SW3	Mass Production	Polarized	450 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	244 mΩ	120 Hz	1220 mArms	1156 µA	0.15	—	30 mm	40 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W331M3535S2NNYXX	SW3	Mass Production	Polarized	450 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	244 mΩ	120 Hz	1200 mArms	1156 µA	0.15	—	35 mm	35 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62I331M3555S2NNYXX	CW6	Mass Production	Polarized	550 V	330 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	563 mΩ	120 Hz	1680 mArms	1278 µA	0.2	—	35 mm	55 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	CW32H681M3550S2NNYXX	CW3	Mass Production	Polarized	500 V	680 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	273 mΩ	120 Hz	2000 mArms	1749 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW32W152M4085S2NNYXX	SW3	Mass Production	Polarized	450 V	1500 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	56 mΩ	120 Hz	2960 mArms	2465 µA	0.15	—	40 mm	85 mm	10 mm	Tin plating	S2	0 g	40	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W391M2550S2NNYXX	SW3	Mass Production	Polarized	450 V	390 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	213 mΩ	120 Hz	1320 mArms	1257 µA	0.15	—	25 mm	50 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62E102M3545S2NNYXX	SW6	Mass Production	有极性	250 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	199 mΩ	120 Hz	2200 mArms	1500 µA	0.15	—	35 mm	45 mm	10 mm	镀锡	S2	0 g	100	—	—	—	Apply
		Snap-in	SW32W391M3050S2NNYXX	SW3	Mass Production	Polarized	450 V	390 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	213 mΩ	120 Hz	1460 mArms	1257 µA	0.15	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32W471M2555S2NNYXX	SW3	Mass Production	Polarized	450 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	179 mΩ	120 Hz	1520 mArms	1380 µA	0.15	—	25 mm	55 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply

1…484950…53
