liquid aluminum electrolytic capacitor
SW32W391M2550S2NNYXX
Mass ProductionSW3 Series · Snap-in
Wide Operating TemperatureLow Leakage CurrentHigh Ripple Current CapabilityLow ESR
Rated Voltage (V)
450 V
Nominal Capacitance
390 µF
Operating Temp
-25 ~ 105 ℃
ESR (max)
213 mΩ
Rated Lifetime
3000 h
Package Size
ø25 × 50 mm
Online Store
Min. Order Qty:208
Package:Snap-in
No online store link available for this part number
Detailed Specifications
Capacitor Categoryliquid aluminum electrolytic capacitor
ShapeSnap-in
Part NumberSW32W391M2550S2NNYXX
SeriesSW3
Lifecycle StatusMass Production
Rated Voltage (V)450
Nominal Capacitance390 µF
ESR (max.)213 mΩ
PolarityPolarized
Min Operating Temp (°C)-25
Max Operating Temp (°C)105
Rated Lifetime (Hours)3000
Rated Ripple Current1320 mArms
ESR Frequency120 Hz
Diameter D (mm)25
Height L (mm)50
Terminal Pitch (mm)10
Min. Package Qty208
Tolerance-20%~+20%
Leakage Current (µA) Max1257
Dissipation Factor (tanδ max.)0.15
Terminal Plating MaterialTin plating
Terminal TypeS2
Weight (g)0
Remarks—
Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number

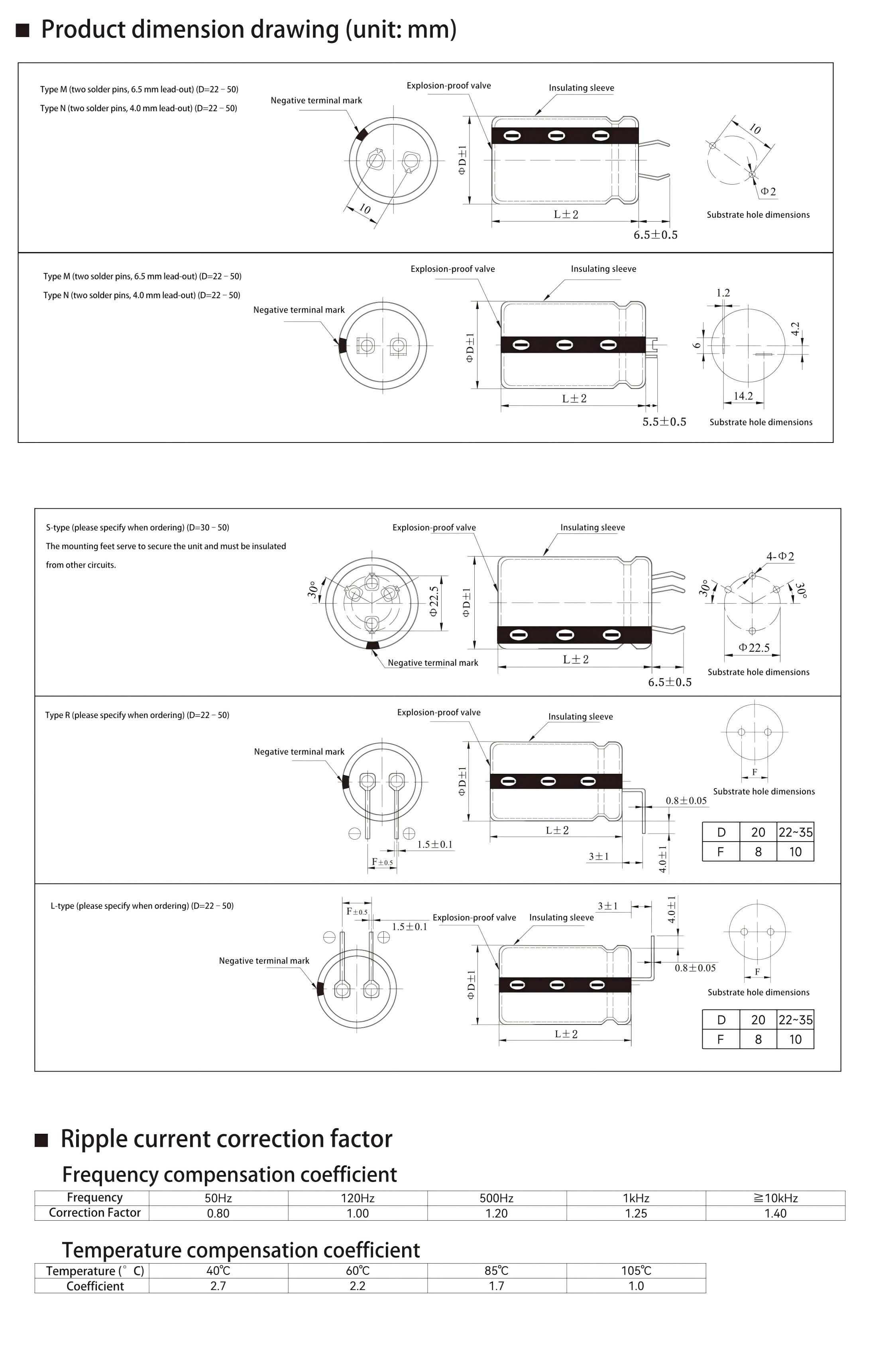

Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 25 |
| Height (L) | L | 50 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 1320 mArms | — | 213 mΩ | 120 Hz |
