Polymer Solid Aluminum Electrolytic Capacitor
VPTD1001H680MVTM
Mass ProductionVPT Series · SMD
High CapacitanceLow ESRHigh Ripple Current WithstandLow Leakage CurrentHigh ReliabilityLong Service LifeWide Temperature Range
Rated Voltage (V)
50 V
Nominal Capacitance
68 µF
Operating Temp
-55 ~ 125 ℃
ESR (max)
50 mΩ
Rated Lifetime
2000 h
Package Size
ø8 × 10 mm
Online Store
Min. Order Qty:500
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor CategoryPolymer Solid Aluminum Electrolytic Capacitor
ShapeSMD
Part NumberVPTD1001H680MVTM
SeriesVPT
Lifecycle StatusMass Production
Rated Voltage (V)50
Nominal Capacitance68 µF
ESR (max.)50 mΩ
PolarityPolarized
Min Operating Temp (°C)-55
Max Operating Temp (°C)125
Rated Lifetime (Hours)2000
Rated Ripple Current2300 mArms
ESR Frequency100 kHz
Diameter D (mm)8
Height L (mm)10
Terminal Pitch (mm)3.5
Min. Package Qty500
Tolerance-20%~+20%
Leakage Current (µA) Max680
Dissipation Factor (tanδ max.)12
Terminal Plating MaterialIron Core, Copper Plated, Tin Coated
Weight (g)0.1
Remarks—

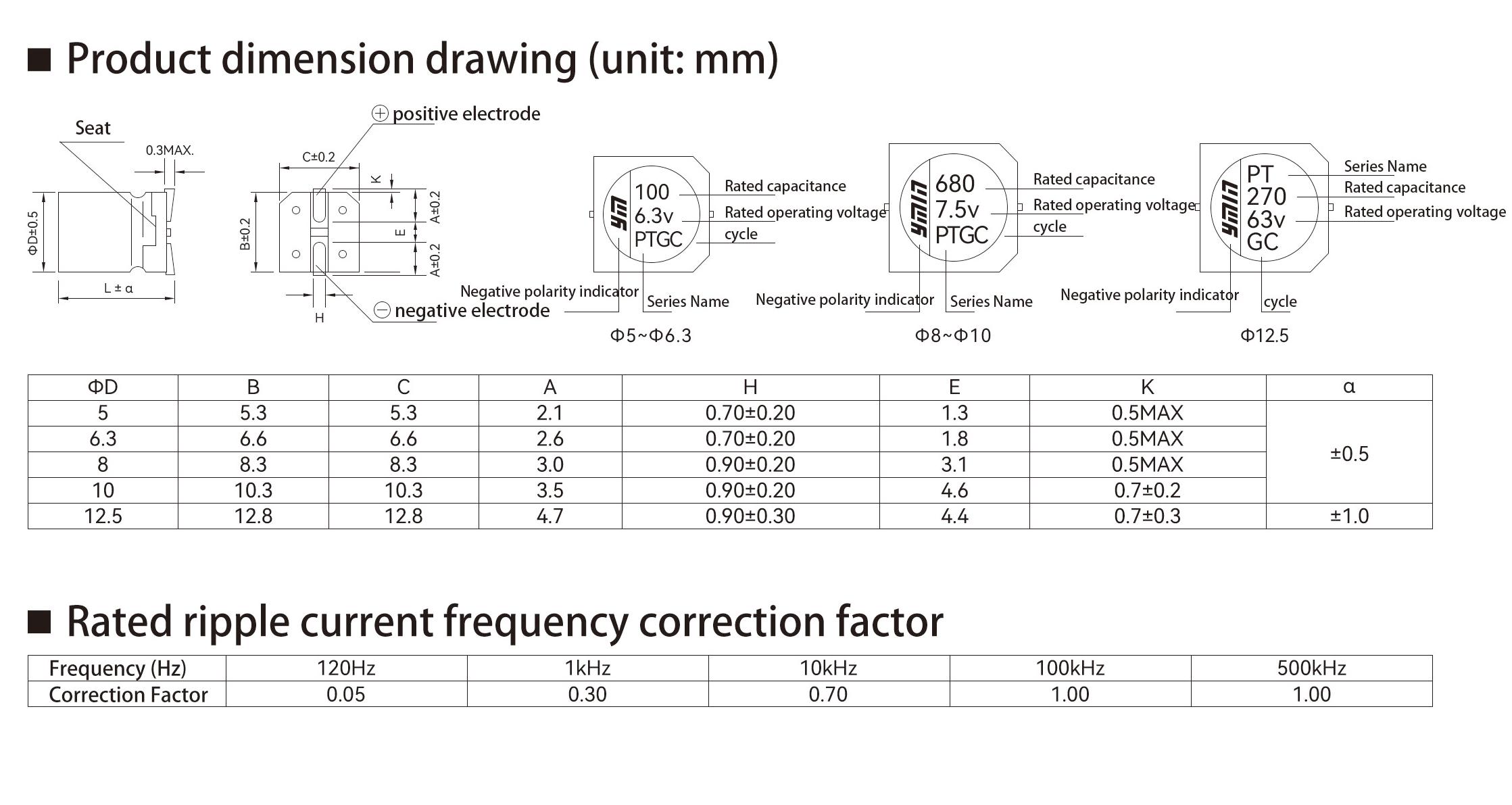

Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number
Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 8 |
| Height (L) | L | 10 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 2300 mArms | — | 50 mΩ | 100 kHz |
Design Tools & Resources
Lifetime Calculator
Online lifetime estimation
3D-CAD Models
STEP / IGES
RoHS/REACH
Compliance certificates
Product PDF
Product datasheet
Cross Reference
The current YMIN part can replace these competitor parts. Verify specifications and application conditions before selection.
Loading cross references…
For replacement options of discontinued models, please contact technical support.
