Metallized Polypropylene Film Capacitor
MDP102306K574530++WR
Mass ProductionMDP Series · Radial Lead
High CapacitanceLow ESRHigh Ripple Current WithstandLow Leakage CurrentLong Service LifeWide Temperature RangeAutomotive Power SupplyDC-DC ConverterBase Station Equipment
Rated Voltage (V)
1000 V
Nominal Capacitance
30 µF
Operating Temp
-40 ~ 105 ℃
ESR (max)
10.4 mΩ
Rated Lifetime
—
Package Size
L 57.5 × W 45 × H 30 mm
Online Store
Min. Order Qty:72
Package:Radial Lead
No online store link available for this part number
Detailed Specifications
Capacitor CategoryMetallized Polypropylene Film Capacitor
ShapeRadial Lead
Part NumberMDP102306K574530++WR
SeriesMDP
Lifecycle StatusMass Production
Rated Voltage (V)1000
Nominal Capacitance30 µF
ESR (max.)10.4 mΩ
Polarity/
Min Operating Temp (°C)-40
Max Operating Temp (°C)105
Rated Lifetime (Hours)—
Rated Ripple Current11.5 Arms
ESR Frequency10 10kHz
Length L (mm)57.5
Min. Package Qty72
Tolerance-10%~+10%
Terminal Plating Material/
Weight (g)0
tanδ max. (1kHz)28
tanδ max. (10kHz)280
Width W (mm)45
Height H (mm)30
Lead L1 (mm)6
Terminal Spacing (mm)52.5
dv/dt (V/μs)17
Remarks—

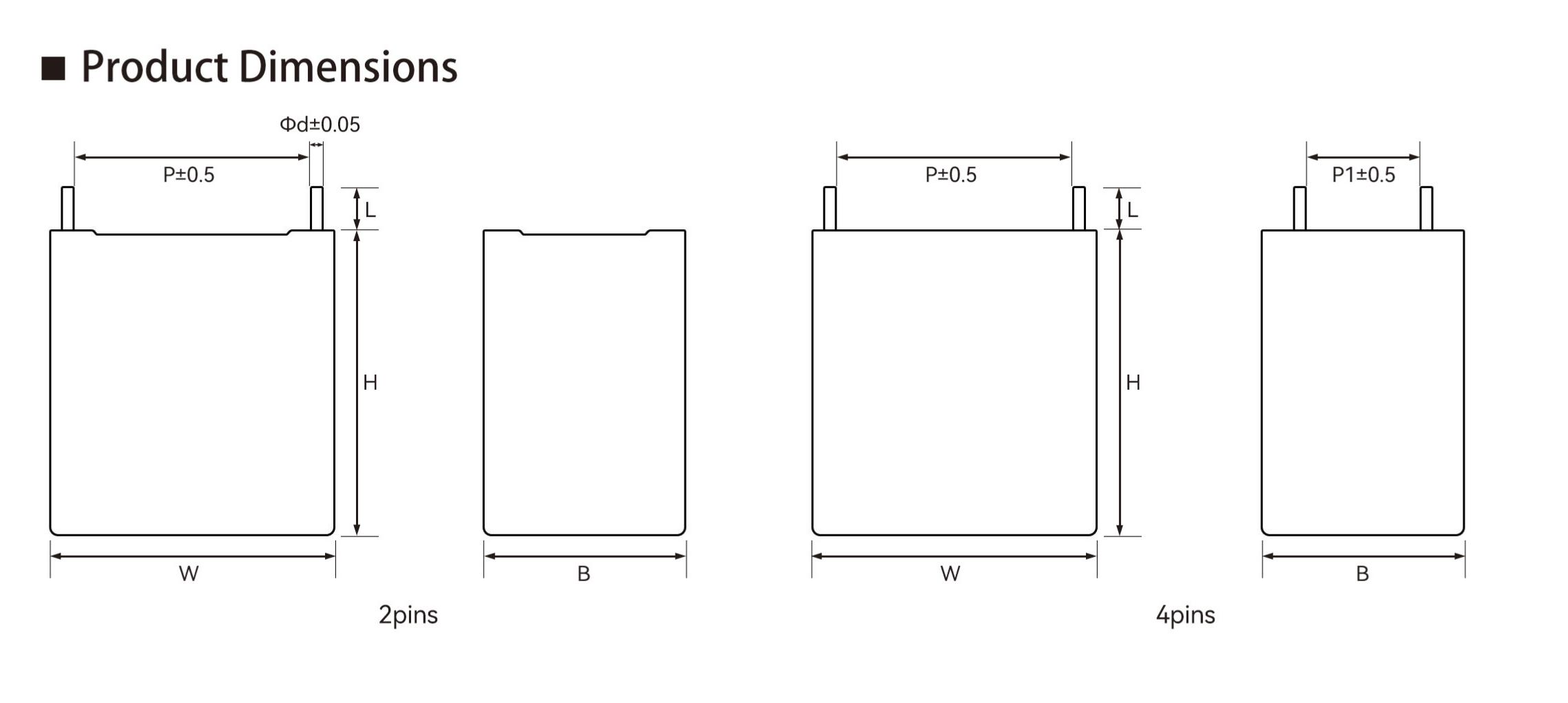

Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number
Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Length (L) | L | 57.5 |
| Width (W) | W | 45 |
| Height (H) | H | 30 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 11.5 Arms | — | 10.4 mΩ | 10 10kHz |
