Filters1

Polymer Solid Aluminum Electrolytic

Clear All Filters

Found 2,813 resultsDefaultVoltage Low to HighCapacity Low to HighLife High to Low

Compare	Product Image	Package Form	Part Number	Series	Lifecycle Status	Polarity	Rated Voltage (V)	Nominal Cap.	Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	Dimension D (mm)	Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Weight	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
		SMD	VPTD1252D6R8MVTM	VPT	Mass Production	Polarized	200 V	6.8 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	80 mΩ	100 kHz	2000 mArms	500 µA	12	8 mm	12.5 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	400	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTE1802A101MJTM	NPT	Mass Production	Polarized	100 V	100 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	40 mΩ	100 kHz	3500 mArms	2000 µA	12	10 mm	18 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTE1801V331MJTM	NPT	Mass Production	Polarized	35 V	330 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	20 mΩ	100 kHz	5000 mArms	2310 µA	13	10 mm	18 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTE1401V221MJTM	NPT	Mass Production	Polarized	35 V	220 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	20 mΩ	100 kHz	4450 mArms	1540 µA	12	10 mm	14 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		SMD	VPLC1100J102MVTM	VPL	Mass Production	Polarized	6.3 V	1000 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	8 mΩ	100 kHz	5500 mArms	1260 µA	8	6.3 mm	11 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NP1C1101A561MJTM	NP1	Mass Production	Polarized	10 V	560 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	10 mΩ	100 kHz	5400 mArms	1120 µA	8	6.3 mm	11 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life	—		Apply
		Radial Lead	NPXH1401C681MJTM	NPX	Mass Production	有极性	16 V	680 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	4900 mArms	2176 µA	8	5.5 mm	14 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXH1501C821MJTM	NPX	Mass Production	有极性	16 V	820 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	4560 mArms	2624 µA	8	5.5 mm	15 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPLL1801V152MJTM	NPL	Mass Production	Polarized	35 V	1500 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	20 mΩ	100 kHz	5600 mArms	7500 µA	13	12.5 mm	18 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	100	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTI3552C221MJTM	NPT	Mass Production	Polarized	160 V	220 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	60 mΩ	100 kHz	3500 mArms	7040 µA	12	16 mm	35.5 mm	7.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	50	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPHD1602C270MJTM	NPH	Mass Production	Polarized	160 V	27 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	2600 mArms	864 µA	12	8 mm	16 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		Radial Lead	NPXB0600J101MJTM	NPX	Mass Production	有极性	6.3 V	100 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	20 mΩ	100 kHz	2400 mArms	300 µA	8	5 mm	6 mm	2 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPLC0421E100MJTM	NPL	Mass Production	Polarized	25 V	10 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	40 mΩ	100 kHz	1800 mArms	300 µA	8	6.3 mm	4.2 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPXC0541A101MVTM	VPX	Mass Production	有极性	10 V	100 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	40 mΩ	100 kHz	2100 mArms	500 µA	8	6.3 mm	5.4 mm	2.5 mm	铁镀铜包锡	0.1 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		SMD	VPLC0541A101MVTM	VPL	Mass Production	Polarized	10 V	100 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	40 mΩ	100 kHz	2100 mArms	500 µA	8	6.3 mm	5.4 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPXL1601H561MJTM	NPX	Mass Production	有极性	50 V	560 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	4300 mArms	5600 µA	12	12.5 mm	16 mm	5 mm	铁镀铜包锡	0.1 g	125	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		SMD	VPXB0851E680MVTM	VPX	Mass Production	有极性	25 V	68 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	50 mΩ	100 kHz	2000 mArms	500 µA	8	5 mm	8.5 mm	2 mm	铁镀铜包锡	0.1 g	900	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		SMD	VPXC0581V820MVTM	VPX	Mass Production	有极性	35 V	82 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	1550 mArms	574 µA	12	6.3 mm	5.8 mm	2.5 mm	铁镀铜包锡	0.1 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPHE1602E150MJTM	NPH	Mass Production	Polarized	250 V	15 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	3000 mArms	750 µA	12	10 mm	16 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		SMD	VPTD1251H820MVTM	VPT	Mass Production	Polarized	50 V	82 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	50 mΩ	100 kHz	1200 mArms	820 µA	12	8 mm	12.5 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1700	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPHE1202E100MJTM	NPH	Mass Production	Polarized	250 V	10 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	80 mΩ	100 kHz	2100 mArms	500 µA	12	10 mm	12 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		SMD	VPLE1701V102MVTM	VPL	Mass Production	Polarized	35 V	1000 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	20 mΩ	100 kHz	4700 mArms	7000 µA	12	10 mm	17 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	300	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPHL2002C151MJTM	NPH	Mass Production	Polarized	160 V	150 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	3350 mArms	4800 µA	12	12.5 mm	20 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	100	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		Radial Lead	NPXD3001J331MJTM	NPX	Mass Production	有极性	63 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	20 mΩ	100 kHz	5000 mArms	4158 µA	12	8 mm	30 mm	3.5 mm	铁镀铜包锡	0.1 g	400	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		SMD	VPHD1252E4R7MVTM	VPH	Mass Production	Polarized	250 V	4.7 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	80 mΩ	100 kHz	1980 mArms	500 µA	12	8 mm	12.5 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	400	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPHJ3102D151MJTM	NPH	Mass Production	Polarized	200 V	150 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	4200 mArms	6000 µA	12	18 mm	31 mm	7.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	51	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		Radial Lead	NPLB1001C101MJTM	NPL	Mass Production	Polarized	16 V	100 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	4000 mArms	320 µA	8	5 mm	10 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPTB0501E470MVTM	VPT	Mass Production	Polarized	25 V	47 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	40 mΩ	100 kHz	750 mArms	500 µA	8	5 mm	5 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPTB0501A101MVTM	VPT	Mass Production	Polarized	10 V	100 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	30 mΩ	100 kHz	800 mArms	500 µA	8	5 mm	5 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPLB1201V101MVTM	VPL	Mass Production	Polarized	35 V	100 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	40 mΩ	100 kHz	2100 mArms	700 µA	12	5 mm	12 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		SMD	VPLD0771V151MVTM	VPL	Mass Production	Polarized	35 V	150 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	60 mΩ	100 kHz	1900 mArms	1050 µA	12	8 mm	7.7 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	600	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPTA1101V820MJTM	NPT	Mass Production	Polarized	35 V	82 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	100 mΩ	100 kHz	950 mArms	574 µA	12	4 mm	11 mm	1.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPHL1252B390MJTM	NPH	Mass Production	Polarized	125 V	39 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	80 mΩ	100 kHz	2350 mArms	975 µA	12	12.5 mm	12.5 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		Radial Lead	NPTL2501K331MJTM	NPT	Mass Production	Polarized	80 V	330 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	25 mΩ	100 kHz	4850 mArms	5280 µA	10	12.5 mm	25 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	100	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTJ2501K681MJTM	NPT	Mass Production	Polarized	80 V	680 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	28 mΩ	100 kHz	5350 mArms	7500 µA	12	18 mm	25 mm	7.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	54	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTE0801J680MJTM	NPT	Mass Production	Polarized	63 V	68 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	60 mΩ	100 kHz	1000 mArms	856.8 µA	12	10 mm	8 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPHL2002B820MJTM	NPH	Mass Production	Polarized	125 V	82 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	3350 mArms	2050 µA	12	12.5 mm	20 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	100	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, DC-DC Converter, Base Station Equipment	—		Apply
		Radial Lead	NPGI1601H681MJTM	NPG	Mass Production	Polarized	50 V	680 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	4400 mArms	6800 µA	12	16 mm	16 mm	7.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	75	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life	—		Apply
		Radial Lead	NPTL2501E152MJTM	NPT	Mass Production	Polarized	25 V	1500 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	16 mΩ	100 kHz	7300 mArms	7500 µA	14	12.5 mm	25 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	100	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPLB0701V470MJTM	NPL	Mass Production	Polarized	35 V	47 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	50 mΩ	100 kHz	1700 mArms	329 µA	12	5 mm	7 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPTE1251K121MVTM	VPT	Mass Production	Polarized	80 V	120 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	40 mΩ	100 kHz	2200 mArms	1920 µA	10	10 mm	12.5 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	400	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPXC0541J220MVTM	VPX	Mass Production	有极性	63 V	22 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	1350 mArms	500 µA	12	6.3 mm	5.4 mm	2.5 mm	铁镀铜包锡	0.1 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply

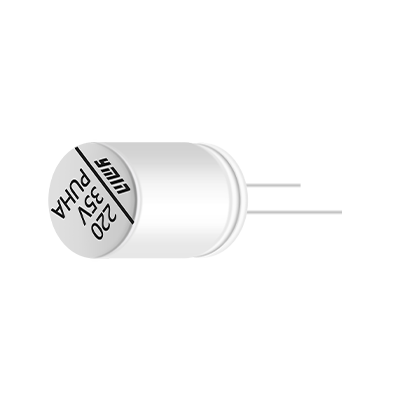

		Radial Lead	NPUL3002D101MJTM	NPU	Mass Production	有极性	200 V	100 µF	-20%~+20%	-55 ~ 125 ℃	4000 h	60 mΩ	100 kHz	3000 mArms	4000 µA	12	12.5 mm	30 mm	5 mm	铁镀铜包锡	0.1 g	100	高可靠性 低ESR 高容许纹波电流 125℃ 4000小时保证 已应对RoHS指令 耐高温品	—		Apply
		SMD	VPWC0770J271MVTM	VPW	Mass Production	Polarized	6.3 V	270 µF	-20%~+20%	-55 ~ 105 ℃	15000 h	16 mΩ	100 kHz	3450 mArms	500 µA	12	6.3 mm	7.7 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	900	High Capacitance, Ultra Low ESR, Super High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, RoHS Compliant	—		Apply
		SMD	VPLE1051K680MVTM	VPL	Mass Production	Polarized	80 V	68 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	50 mΩ	100 kHz	2500 mArms	1088 µA	12	10 mm	10.5 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		SMD	VPXC1451H181MVTM	VPX	Mass Production	有极性	50 V	180 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	3000 mArms	1800 µA	12	6.3 mm	14.5 mm	2.5 mm	铁镀铜包锡	0.1 g	350	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		SMD	VPLB0581C470MVTM	VPL	Mass Production	Polarized	16 V	47 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	30 mΩ	100 kHz	1900 mArms	100 µA	8	5 mm	5.8 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		SMD	VPXE1051H331MVTM	VPX	Mass Production	有极性	50 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	28 mΩ	100 kHz	800 mArms	3300 µA	10	10 mm	10.5 mm	5 mm	铁镀铜包锡	0.1 g	500	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPLB0800J471MJTM	NPL	Mass Production	Polarized	6.3 V	470 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	3400 mArms	592 µA	8	5 mm	8 mm	2 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTD1001J820MJTM	NPT	Mass Production	Polarized	63 V	82 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	50 mΩ	100 kHz	1150 mArms	1033.2 µA	12	8 mm	10 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply

1…8910…57
