Filters1

Polymer Solid Aluminum Electrolytic

Clear All Filters

Found 2,813 resultsDefaultVoltage Low to HighCapacity Low to HighLife High to Low

Compare	Product Image	Package Form	Part Number	Series	Lifecycle Status	Polarity	Rated Voltage (V)	Nominal Cap.	Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	Dimension D (mm)	Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Weight	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
		Radial Lead	NPLL1601J471MJTM	NPL	Mass Production	Polarized	63 V	470 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	30 mΩ	100 kHz	4300 mArms	5922 µA	12	12.5 mm	16 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	125	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTL1602B101MJTM	NPT	Mass Production	Polarized	125 V	100 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	60 mΩ	100 kHz	2000 mArms	2500 µA	12	12.5 mm	16 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	125	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTD1401J151MJTM	NPT	Mass Production	Polarized	63 V	150 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	50 mΩ	100 kHz	1300 mArms	1890 µA	12	8 mm	14 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPXC0801H560MJTM	NPX	Mass Production	有极性	50 V	56 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	50 mΩ	100 kHz	1900 mArms	560 µA	12	6.3 mm	8 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		SMD	VPTC0581C101MVTM	VPT	Mass Production	Polarized	16 V	100 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	30 mΩ	100 kHz	1000 mArms	160 µA	8	6.3 mm	5.8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTD2001V122MJTM	NPT	Mass Production	Polarized	35 V	1200 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	20 mΩ	100 kHz	2250 mArms	7500 µA	12	8 mm	20 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTC0901C331MJTM	NPT	Mass Production	Polarized	16 V	330 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	12 mΩ	100 kHz	1950 mArms	1056 µA	8	6.3 mm	9 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPXB0901E221MJTM	NPX	Mass Production	有极性	25 V	220 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	2400 mArms	25 µA	8	5 mm	9 mm	2 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPTC0800J681MJTM	NPT	Mass Production	Polarized	6.3 V	680 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	12 mΩ	100 kHz	2300 mArms	857 µA	8	6.3 mm	8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTC1501A152MJTM	NPT	Mass Production	Polarized	10 V	1500 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	10 mΩ	100 kHz	2850 mArms	3000 µA	8	6.3 mm	15 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		SMD	VPLC0581H470MVTM	VPL	Mass Production	Polarized	50 V	47 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	60 mΩ	100 kHz	1550 mArms	500 µA	12	6.3 mm	5.8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPXC0901E331MJTM	NPX	Mass Production	有极性	25 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	20 mΩ	100 kHz	3500 mArms	50 µA	8	6.3 mm	9 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		SMD	VPXC0951E331MVTM	VPX	Mass Production	有极性	25 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	20 mΩ	100 kHz	3500 mArms	50 µA	8	6.3 mm	9.5 mm	2.5 mm	铁镀铜包锡	0.1 g	700	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPLD1101C821MJTM	NPL	Mass Production	Polarized	16 V	820 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	10 mΩ	100 kHz	5200 mArms	2624 µA	8	8 mm	11 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTC0701C271MJTM	NPT	Mass Production	Polarized	16 V	270 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	16 mΩ	100 kHz	1800 mArms	864 µA	8	6.3 mm	7 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPTC1201V151MJTM	NPT	Mass Production	Polarized	35 V	150 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	40 mΩ	100 kHz	1200 mArms	1050 µA	12	6.3 mm	12 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		SMD	VPTL2101V182MVTM	VPT	Mass Production	Polarized	35 V	1800 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	20 mΩ	100 kHz	2650 mArms	7500 µA	13	12.5 mm	21 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	175	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPXC0581C390MVTM	VPX	Mass Production	有极性	16 V	39 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	2200 mArms	500 µA	16	6.3 mm	5.8 mm	2.5 mm	铁镀铜包锡	0.1 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPTC0801A331MJTM	NPT	Mass Production	Polarized	10 V	330 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	12 mΩ	100 kHz	1900 mArms	660 µA	8	6.3 mm	8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		SMD	VPXE1701H331MVTM	VPX	Mass Production	有极性	50 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	3800 mArms	3300 µA	12	10 mm	17 mm	5 mm	铁镀铜包锡	0.1 g	300	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPXC1101A821MJTM	NPX	Mass Production	有极性	10 V	820 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	5000 mArms	82 µA	8	6.3 mm	11 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		SMD	VPXC1201A821MVTM	VPX	Mass Production	有极性	10 V	820 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	5300 mArms	1640 µA	8	6.3 mm	12 mm	2.5 mm	铁镀铜包锡	0.1 g	500	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		SMD	VPLC1201A821MVTM	VPL	Mass Production	Polarized	10 V	820 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	5000 mArms	1640 µA	8	6.3 mm	12 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPTC1401C681MJTM	NPT	Mass Production	Polarized	16 V	680 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	10 mΩ	100 kHz	2200 mArms	2176 µA	8	6.3 mm	14 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPLD1601E102MJTM	NPL	Mass Production	Polarized	25 V	1000 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	16 mΩ	100 kHz	5050 mArms	5000 µA	8	8 mm	16 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply

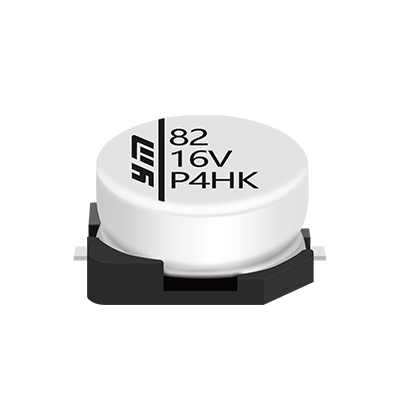

		SMD	VP4C0391E680MVTM	VP4	Mass Production	Polarized	25 V	68 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	60 mΩ	100 kHz	1150 mArms	500 µA	8	6.3 mm	3.95 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPXC0800J681MJTM	NPX	Mass Production	有极性	6.3 V	680 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	5000 mArms	43 µA	8	6.3 mm	8 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPTD1100J102MJTM	NPT	Mass Production	Polarized	6.3 V	1000 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	12 mΩ	100 kHz	2800 mArms	1260 µA	9	8 mm	11 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPXB0901E560MJTM	NPX	Mass Production	有极性	25 V	56 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	30 mΩ	100 kHz	2400 mArms	300 µA	8	5 mm	9 mm	2 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPLC0800J561MJTM	NPL	Mass Production	Polarized	6.3 V	560 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	5000 mArms	706 µA	8	6.3 mm	8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPLC0541V100MVTM	VPL	Mass Production	Polarized	35 V	10 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	60 mΩ	100 kHz	1450 mArms	500 µA	12	6.3 mm	5.4 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPXB0900J561MJTM	NPX	Mass Production	有极性	6.3 V	560 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	3850 mArms	35 µA	8	5 mm	9 mm	2 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPLC0901C331MJTM	NPL	Mass Production	Polarized	16 V	330 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	4300 mArms	53 µA	8	6.3 mm	9 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPTC0771A331MVTM	VPT	Mass Production	Polarized	10 V	330 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	16 mΩ	100 kHz	1800 mArms	33 µA	8	6.3 mm	7.7 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	900	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPXC0580J101MVTM	VPX	Mass Production	有极性	6.3 V	100 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	18 mΩ	100 kHz	2800 mArms	50 µA	8	6.3 mm	5.8 mm	2.5 mm	铁镀铜包锡	0 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		Radial Lead	NPLD1001C681MJTM	NPL	Mass Production	Polarized	16 V	680 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	5200 mArms	109 µA	8	8 mm	10 mm	3.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		SMD	VPLC0581A221MVTM	VPL	Mass Production	Polarized	10 V	220 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	30 mΩ	100 kHz	2200 mArms	220 µA	8	6.3 mm	5.8 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1200	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		SMD	VPXC0541E151MVTM	VPX	Mass Production	有极性	25 V	150 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	50 mΩ	100 kHz	1800 mArms	750 µA	8	6.3 mm	5.4 mm	2.5 mm	铁镀铜包锡	0.1 g	1200	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品 表面贴装型	—		Apply
		SMD	VPLC0771C271MVTM	VPL	Mass Production	Polarized	16 V	270 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	16 mΩ	100 kHz	3900 mArms	50 µA	8	6.3 mm	7.7 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	900	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Reflow Soldering Support	—		Apply
		Radial Lead	NPLE0801C681MJTM	NPL	Mass Production	Polarized	16 V	680 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	4500 mArms	109 µA	8	10 mm	8 mm	5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	500	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTH0901H680MJTM	NPT	Mass Production	Polarized	50 V	68 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	50 mΩ	100 kHz	1000 mArms	680 µA	12	5.5 mm	9 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPXD1101C102MJTM	NPX	Mass Production	有极性	16 V	1000 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	10 mΩ	100 kHz	5500 mArms	160 µA	8	8 mm	11 mm	3.5 mm	铁镀铜包锡	0.1 g	500	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXH1100J821MJTM	NPX	Mass Production	有极性	6.3 V	820 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	4000 mArms	1033 µA	8	5.5 mm	11 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXC0901C331MJTM	NPX	Mass Production	有极性	16 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	4300 mArms	1056 µA	8	6.3 mm	9 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXD1101D221MJTM	NPX	Mass Production	有极性	20 V	220 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	16 mΩ	100 kHz	4200 mArms	880 µA	8	8 mm	11 mm	3.5 mm	铁镀铜包锡	0.1 g	500	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXC0801A331MJTM	NPX	Mass Production	有极性	10 V	330 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	12 mΩ	100 kHz	3900 mArms	660 µA	8	6.3 mm	8 mm	2.5 mm	铁镀铜包锡	0.1 g	1000	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPXD0901H221MJTM	NPX	Mass Production	有极性	50 V	220 µF	-20%~+20%	-55 ~ 105 ℃	2000 h	50 mΩ	100 kHz	2300 mArms	2200 µA	12	8 mm	9 mm	3.5 mm	铁镀铜包锡	0.1 g	500	高可靠性 低ESR 高容许纹波电流；105℃ 2000小时保证；已应对RoHS指令；小型化品	—		Apply
		Radial Lead	NPLC1100J102MJTM	NPL	Mass Production	Polarized	6.3 V	1000 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	12 mΩ	100 kHz	5700 mArms	1260 µA	8	6.3 mm	11 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply
		Radial Lead	NPTC1501C122MJTM	NPT	Mass Production	Polarized	16 V	1200 µF	-20%~+20%	-55 ~ 125 ℃	2000 h	8 mΩ	100 kHz	2400 mArms	3840 µA	8	6.3 mm	15 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Long Service Life, Wide Temperature Range, Automotive Power Supply, DC-DC Converter, Industrial Control	—		Apply
		Radial Lead	NPLC1101J470MJTM	NPL	Mass Production	Polarized	63 V	47 µF	-20%~+20%	-55 ~ 105 ℃	5000 h	40 mΩ	100 kHz	2600 mArms	592 µA	12	6.3 mm	11 mm	2.5 mm	Iron Core, Copper Plated, Tin Coated	0.1 g	1000	High Capacitance, Low ESR, High Ripple Current Withstand, Low Leakage Current, High Reliability, Extra Long Service Life, Wide Temperature Range	—		Apply

123…57
