Filters1

Liquid Aluminum Electrolytic

Clear All Filters

Found 2,613 resultsDefaultVoltage Low to HighCapacity Low to HighLife High to Low

Compare	Product Image	Package Form	Part Number	Series	Lifecycle Status	Polarity	Rated Voltage (V)	Nominal Cap.	Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	tanδ Frequency (Hz)	Dimension D (mm)	Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Terminal Type	Weight	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
		Snap-in	SW62G681K3550S2NNYXX	SW6	Mass Production	有极性	400 V	680 µF	-10%~+10%	-25 ~ 105 ℃	6000 h	293 mΩ	120 Hz	1880 mArms	1565 µA	0.15	—	35 mm	50 mm	10 mm	镀锡	S2	0 g	100	—	—	—	Apply

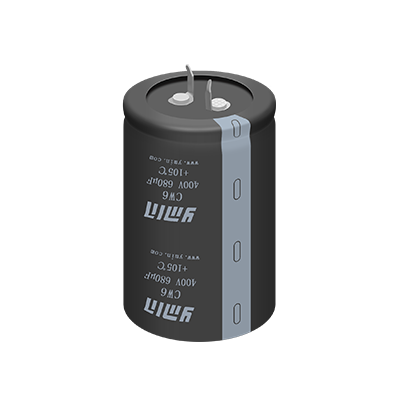

		Snap-in	CW62G101M2225S2NNYXX	CW6	Mass Production	Polarized	400 V	100 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	1459 mΩ	120 Hz	540 mArms	600 µA	0.2	—	22 mm	25 mm	8.4 mm	Tin plating	S2	0 g	405	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply

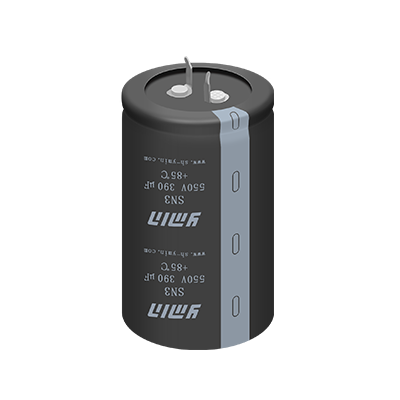

		Snap-in	SN32A103M3570S2NNYXX	SN3	Mass Production	有极性	100 V	10000 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	20 mΩ	120 Hz	3690 mArms	3000 µA	0.2	—	35 mm	70 mm	10 mm	镀锡	S2	0 g	50	—	—	—	Apply

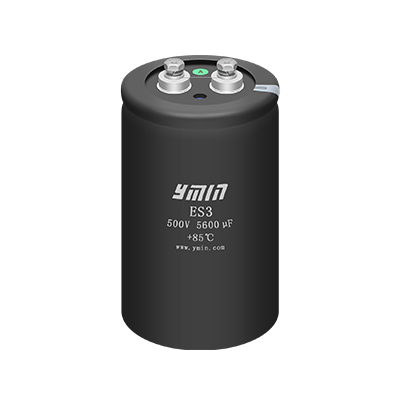

		Bolt Type	ES32A253M64B0M5YNYXX	ES3	Mass Production	有极性	100 V	25000 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	1.2 mΩ	120 Hz	12810 mArms	4743 µA	0.18	—	64 mm	110 mm	28.3 mm	镀锡	M5	0 g	24	—	—	—	Apply
		Snap-in	SW62W471M3545STNNYXX	SW6	Mass Production	有极性	450 V	470 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	565 mΩ	120 Hz	1500 mArms	1380 µA	0.2	—	35 mm	45 mm	10 mm	镀锡	TX	0 g	100	—	—	—	Apply

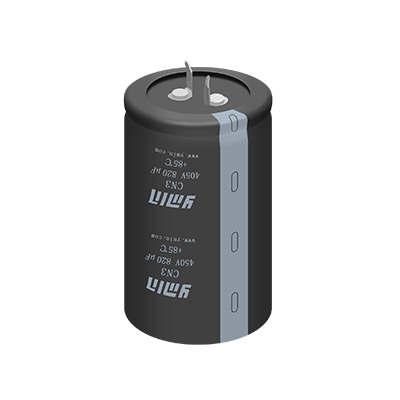

		Snap-in	CN32G681M3550S2NNYXX	CN3	Mass Production	有极性	400 V	680 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	254 mΩ	120 Hz	1840 mArms	1565 µA	0.15	—	35 mm	50 mm	10 mm	镀锡	S2	0 g	100	—	—	—	Apply
		Snap-in	SN31H273M3550S2NNYXX	SN3	Mass Production	有极性	50 V	27000 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	16 mΩ	120 Hz	3600 mArms	3486 µA	0.3	—	35 mm	50 mm	10 mm	镀锡	S2	0 g	100	—	—	—	Apply
		Snap-in	CW62I331M3550S2NNYXX	CW6	Mass Production	Polarized	550 V	330 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	563 mΩ	120 Hz	1640 mArms	1278 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW31H103M3040S2NNYXX	SW3	Mass Production	Polarized	50 V	10000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	38 mΩ	120 Hz	3800 mArms	2121 µA	0.3	—	30 mm	40 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62W681M3550S2NNYXX	CW6	Mass Production	Polarized	450 V	680 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	234 mΩ	120 Hz	2140 mArms	1660 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32H681M3555S2NNYXX	SW3	Mass Production	Polarized	500 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	388 mΩ	120 Hz	2450 mArms	1749 µA	0.15	—	35 mm	55 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62G102K3560S2NNYXX	SW6	Mass Production	有极性	400 V	1000 µF	-10%~+10%	-25 ~ 105 ℃	6000 h	199 mΩ	120 Hz	2690 mArms	1897 µA	0.15	—	35 mm	60 mm	10 mm	镀锡	S2	0 g	50	—	—	—	Apply
		Snap-in	SW62T122M3575S2NNYXX	SW6	Mass Production	有极性	420 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	159 mΩ	120 Hz	3020 mArms	2130 µA	0.15	—	35 mm	75 mm	10 mm	镀锡	S2	0 g	50	—	—	—	Apply
		Snap-in	SW32C222M3540S2NNYXX	SW3	Mass Production	Polarized	160 V	2200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	89 mΩ	120 Hz	2840 mArms	1780 µA	0.15	—	35 mm	40 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62W820M2230S2NNYXX	SW6	Mass Production	有极性	450 V	82 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	3237 mΩ	120 Hz	420 mArms	576 µA	0.2	—	22 mm	30 mm	8.4 mm	镀锡	S2	0 g	405	—	—	—	Apply
		Snap-in	SW32F102M3050S2NNYXX	SW3	Mass Production	Polarized	315 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	178 mΩ	120 Hz	2380 mArms	1684 µA	0.15	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32E182M3550S2NNYXX	SW3	Mass Production	Polarized	250 V	1800 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	110 mΩ	120 Hz	2720 mArms	2012 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62W151M2525S2NNYXX	SW6	Mass Production	有极性	450 V	150 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1769 mΩ	120 Hz	570 mArms	779 µA	0.2	—	25 mm	25 mm	10 mm	镀锡	S2	0 g	312	—	—	—	Apply
		Snap-in	SW32M102M3040S2NNYXX	SW3	Mass Production	Polarized	180 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	196 mΩ	120 Hz	1980 mArms	1273 µA	0.15	—	30 mm	40 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply

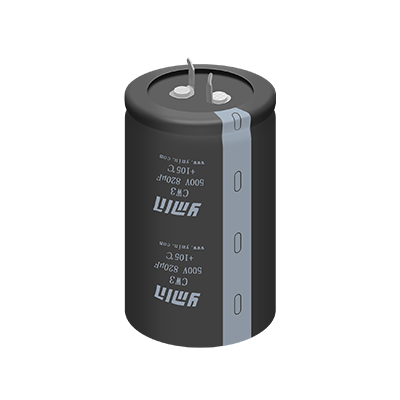

		Snap-in	CW3S2W391M3530S2NNYXX	CW3S	Mass Production	Polarized	450 V	390 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	442 mΩ	120 Hz	1350 mArms	1257 µA	0.2	—	35 mm	30 mm	10 mm	Tin plating	S2	0 g	150	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW62W181M3025S2NNYXX	SW6	Mass Production	有极性	450 V	180 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1474 mΩ	120 Hz	690 mArms	854 µA	0.2	—	30 mm	25 mm	10 mm	镀锡	S2	0 g	216	—	—	—	Apply
		Bolt Type	EW32V223M90O0M6YNYXX	EW3	Mass Production	Polarized	350 V	22000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	4 mΩ	120 Hz	15370 mArms	5000 µA	0.15	—	90 mm	240 mm	32 mm	Tin plating	M6	0 g	12	Wide Temperature Stability,High Capacitance Range,Low Leakage Current,High Ripple Current Capability	—		Apply
		Snap-in	CW62W102M3570S2NNYXX	CW6	Mass Production	Polarized	450 V	1000 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	159 mΩ	120 Hz	2780 mArms	2012 µA	0.2	—	35 mm	70 mm	10 mm	Tin plating	S2	0 g	50	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW62W181M3035S2NNYXX	SW6	Mass Production	有极性	450 V	180 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1474 mΩ	120 Hz	740 mArms	854 µA	0.2	—	30 mm	35 mm	10 mm	镀锡	S2	0 g	144	—	—	—	Apply
		Bolt Type	ES32V223M90O0M6YNYXX	ES3	Mass Production	有极性	350 V	22000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	4.4 mΩ	120 Hz	21020 mArms	5000 µA	0.18	—	90 mm	240 mm	32 mm	镀锡	M6	0 g	12	—	—	—	Apply
		Bolt Type	ES32D333M90F5M6YNYXX	ES3	Mass Production	有极性	200 V	33000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	1.7 mΩ	120 Hz	20840 mArms	5000 µA	0.18	—	90 mm	155 mm	32 mm	镀锡	M6	0 g	12	—	—	—	Apply
		Snap-in	SW32G331M3030SSNNWXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	242 mΩ	120 Hz	1480 mArms	1090 µA	0.15	—	30 mm	30 mm	10 mm	Tin plating	S2	0 g	216	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	EW32A104M90G0M6YNYXX	EW3	Mass Production	Polarized	100 V	100000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	1.3 mΩ	120 Hz	14930 mArms	5000 µA	0.15	—	90 mm	160 mm	32 mm	Tin plating	M6	0 g	12	Wide Temperature Stability,High Capacitance Range,Low Leakage Current,High Ripple Current Capability	—		Apply
		Snap-in	SW62W221M2545S2NNYXX	SW6	Mass Production	有极性	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1206 mΩ	120 Hz	850 mArms	944 µA	0.2	—	25 mm	45 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Snap-in	SW62W221M2550S2NNYXX	SW6	Mass Production	有极性	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1206 mΩ	120 Hz	880 mArms	944 µA	0.2	—	25 mm	50 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Snap-in	SW62W221M3035S2NNYXX	SW6	Mass Production	有极性	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1206 mΩ	120 Hz	880 mArms	944 µA	0.2	—	30 mm	35 mm	10 mm	镀锡	S2	0 g	144	—	—	—	Apply
		Snap-in	SW62W271M2545S2NNYXX	SW6	Mass Production	有极性	450 V	270 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	983 mΩ	120 Hz	930 mArms	1046 µA	0.2	—	25 mm	45 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Snap-in	SW32W331M3030S2NNYXX	SW3	Mass Production	Polarized	450 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	245 mΩ	120 Hz	1140 mArms	1156 µA	0.15	—	30 mm	30 mm	10 mm	Tin plating	S2	0 g	216	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW32V102M3550S2NNYXX	CW3	Mass Production	Polarized	350 V	1000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	146 mΩ	120 Hz	2610 mArms	1775 µA	0.2	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW62W271M3030S2NNYXX	SW6	Mass Production	有极性	450 V	270 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	983 mΩ	120 Hz	910 mArms	1046 µA	0.2	—	30 mm	30 mm	10 mm	镀锡	S2	0 g	216	—	—	—	Apply
		Snap-in	SW62W331M2550SSNNYXX	SW6	Mass Production	有极性	450 V	330 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	804 mΩ	120 Hz	1070 mArms	1156 µA	0.2	—	25 mm	50 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Bolt Type	ES32W102M51A5M5YNYXX	ES3	Mass Production	有极性	450 V	1000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	82 mΩ	120 Hz	2550 mArms	2012 µA	0.18	—	51 mm	105 mm	22 mm	镀锡	M5	0 g	40	—	—	—	Apply
		Snap-in	CW32W471M3540S2NNYXX	CW3	Mass Production	Polarized	450 V	470 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	367 mΩ	120 Hz	1590 mArms	1380 µA	0.2	—	35 mm	40 mm	10 mm	Tin plating	S2	0 g	100	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	CW62G221M3525S2NNYXX	CW6	Mass Production	Polarized	400 V	220 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	663 mΩ	120 Hz	1030 mArms	890 µA	0.2	—	35 mm	25 mm	10 mm	Tin plating	S2	0 g	150	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	CW62W221M3525S2NNYXX	CW6	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	723 mΩ	120 Hz	980 mArms	944 µA	0.2	—	35 mm	25 mm	10 mm	Tin plating	S2	0 g	150	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW62W122M4075S4NNYXX	SW6	Mass Production	有极性	450 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	221 mΩ	120 Hz	3480 mArms	2205 µA	0.2	—	40 mm	75 mm	10 mm	镀锡	S4	0 g	40	—	—	—	Apply
		Snap-in	SW32W681M3545S2NNYXX	SW3	Mass Production	Polarized	450 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	133 mΩ	120 Hz	1900 mArms	1660 µA	0.15	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62H221M3530SSNNYXX	SW6	Mass Production	有极性	500 V	220 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1206 mΩ	120 Hz	1050 mArms	995 µA	0.2	—	35 mm	30 mm	10 mm	镀锡	S2	0 g	150	—	—	—	Apply
		Snap-in	SW62H271M2550S2NNYXX	SW6	Mass Production	有极性	500 V	270 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	983 mΩ	120 Hz	1150 mArms	1102 µA	0.2	—	25 mm	50 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Bolt Type	ES32G222M51A5M5YNYXX	ES3	Mass Production	有极性	400 V	2200 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	40 mΩ	120 Hz	3960 mArms	2814 µA	0.18	—	51 mm	105 mm	22 mm	镀锡	M5	0 g	40	—	—	—	Apply
		Snap-in	SW32G151M3025S2NNYXX	SW3	Mass Production	Polarized	400 V	150 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	555 mΩ	120 Hz	950 mArms	735 µA	0.15	—	30 mm	25 mm	10 mm	Tin plating	S2	0 g	216	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62H391M3055S2NNYXX	SW6	Mass Production	有极性	500 V	390 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	681 mΩ	120 Hz	1480 mArms	1325 µA	0.2	—	30 mm	55 mm	10 mm	镀锡	S2	0 g	144	—	—	—	Apply
		Bolt Type	ES32E333M90H0M6YNYXX	ES3	Mass Production	有极性	250 V	33000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	2.1 mΩ	120 Hz	22130 mArms	5000 µA	0.18	—	90 mm	170 mm	32 mm	镀锡	M6	0 g	12	—	—	—	Apply
		Snap-in	SW32W221M2240S2NNYXX	SW3	Mass Production	Polarized	450 V	220 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	306 mΩ	120 Hz	810 mArms	944 µA	0.15	—	22 mm	40 mm	8.4 mm	Tin plating	S2	0 g	270	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62H471M3560S2NNYXX	SW6	Mass Production	有极性	500 V	470 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	565 mΩ	120 Hz	1690 mArms	1454 µA	0.2	—	35 mm	60 mm	10 mm	镀锡	S2	0 g	50	—	—	—	Apply

1…515253
