Filters1

Liquid Aluminum Electrolytic

Clear All Filters

Found 2,613 resultsDefaultVoltage Low to HighCapacity Low to HighLife High to Low

Compare	Product Image	Package Form	Part Number	Series	Lifecycle Status	Polarity	Rated Voltage (V)	Nominal Cap.	Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	tanδ Frequency (Hz)	Dimension D (mm)	Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Terminal Type	Weight	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
		Bolt Type	ES32W103M90F0M6YNYXX	ES3	Mass Production	有极性	450 V	10000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	12 mΩ	120 Hz	12970 mArms	5000 µA	0.18	—	90 mm	150 mm	32 mm	镀锡	M6	0 g	12	—	—	—	Apply
		Snap-in	SW32V102M3550S2NNYXX	SW3	Mass Production	Polarized	350 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	199 mΩ	120 Hz	2060 mArms	1775 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G101M2225S2NNYXX	SW3	Mass Production	Polarized	400 V	100 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	832 mΩ	120 Hz	670 mArms	600 µA	0.15	—	22 mm	25 mm	8.4 mm	Tin plating	S2	0 g	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G101M2230S2NNYXX	SW3	Mass Production	Polarized	400 V	100 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	832 mΩ	120 Hz	700 mArms	600 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	0 g	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G121M2230S2NNYXX	SW3	Mass Production	Polarized	400 V	120 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	693 mΩ	120 Hz	770 mArms	657 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	0 g	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G121M2525S2NNYXX	SW3	Mass Production	Polarized	400 V	120 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	693 mΩ	120 Hz	780 mArms	657 µA	0.15	—	25 mm	25 mm	10 mm	Tin plating	S2	0 g	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G151M2230S2NNYXX	SW3	Mass Production	Polarized	400 V	150 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	555 mΩ	120 Hz	860 mArms	735 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	0 g	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G151M2525S2NNYXX	SW3	Mass Production	Polarized	400 V	150 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	555 mΩ	120 Hz	870 mArms	735 µA	0.15	—	25 mm	25 mm	10 mm	Tin plating	S2	0 g	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G181M2230S2NNYXX	SW3	Mass Production	Polarized	400 V	180 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	462 mΩ	120 Hz	950 mArms	805 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	0 g	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	ES32D333D77G5M5NMWXX	ES3	Mass Production	有极性	200 V	33000 µF	-5%~+5%	-25 ~ 85 ℃	3000 h	1.7 mΩ	120 Hz	19850 mArms	5000 µA	0.18	—	77 mm	165 mm	32 mm	镀锡	M5	0 g	15	—	—	—	Apply
		Bolt Type	ES32G682M77D0M5YNYXX	ES3	Mass Production	有极性	400 V	6800 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	16 mΩ	120 Hz	10200 mArms	4948 µA	0.18	—	77 mm	130 mm	32 mm	镀锡	M5	0 g	15	—	—	—	Apply
		Snap-in	SW32G331M2540S2NNYXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	242 mΩ	120 Hz	1470 mArms	1090 µA	0.15	—	25 mm	40 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	ES32E103M77C0M5YNYXX	ES3	Mass Production	有极性	250 V	10000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	7.1 mΩ	120 Hz	10370 mArms	4743 µA	0.18	—	77 mm	120 mm	32 mm	镀锡	M5	0 g	15	—	—	—	Apply
		Bolt Type	ES32W332M64D0M5YNYXX	ES3	Mass Production	有极性	450 V	3300 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	30 mΩ	120 Hz	5980 mArms	3656 µA	0.18	—	64 mm	130 mm	28.3 mm	镀锡	M5	0 g	24	—	—	—	Apply
		Snap-in	SW32G331M3035S2NNYXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	241 mΩ	120 Hz	1540 mArms	1090 µA	0.15	—	30 mm	35 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW32G471M3050S2NNYXX	CW3	Mass Production	Polarized	400 V	470 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	339 mΩ	120 Hz	1630 mArms	1301 µA	0.2	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	CW32G681M3050S2NNYXX	CW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	234 mΩ	120 Hz	1990 mArms	1565 µA	0.2	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	SW32G331M3535S2NNYXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	242 mΩ	120 Hz	1650 mArms	1090 µA	0.15	—	35 mm	35 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62W102M4065S2NNYXX	SW6	Mass Production	有极性	450 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	266 mΩ	120 Hz	3280 mArms	2012 µA	0.2	—	40 mm	65 mm	10 mm	镀锡	S2	0 g	40	—	—	—	Apply
		Snap-in	SW32G391M3035S2NNYXX	SW3	Mass Production	Polarized	400 V	390 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	209 mΩ	120 Hz	1620 mArms	1185 µA	0.15	—	30 mm	35 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62H391M3545S2NNYXX	CW6	Mass Production	Polarized	500 V	390 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	442 mΩ	120 Hz	1420 mArms	1325 µA	0.2	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply
		Snap-in	SW32W271M2530S2NNYXX	SW3	Mass Production	Polarized	450 V	270 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	275 mΩ	120 Hz	940 mArms	1046 µA	0.15	—	25 mm	30 mm	10 mm	Tin plating	S2	0 g	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62G101M2225S2NNYXX	SW6	Mass Production	有极性	400 V	100 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1990 mΩ	120 Hz	420 mArms	600 µA	0.15	—	22 mm	25 mm	8.4 mm	镀锡	S2	0 g	405	—	—	—	Apply
		Snap-in	SW32G471M2555S2NNYXX	SW3	Mass Production	Polarized	400 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	177 mΩ	120 Hz	1840 mArms	1301 µA	0.15	—	25 mm	55 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G471M3050S2NNYXX	SW3	Mass Production	Polarized	400 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	177 mΩ	120 Hz	1940 mArms	1301 µA	0.15	—	30 mm	50 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32A152M2540S2NNYXX	SW3	Mass Production	Polarized	100 V	1500 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	173 mΩ	120 Hz	2000 mArms	1162 µA	0.2	—	25 mm	40 mm	10 mm	Tin plating	S2	0 g	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G561M3040S2NNYXX	SW3	Mass Production	Polarized	400 V	560 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	154 mΩ	120 Hz	1920 mArms	1420 µA	0.15	—	30 mm	40 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G561M3045S2NNYXX	SW3	Mass Production	Polarized	400 V	560 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	154 mΩ	120 Hz	1980 mArms	1420 µA	0.15	—	30 mm	45 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32V122M3550S2NNYXX	SW3	Mass Production	Polarized	350 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	166 mΩ	120 Hz	2250 mArms	1944 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G681M3045S2NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2130 mArms	1565 µA	0.15	—	30 mm	45 mm	10 mm	Tin plating	S2	0 g	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G681M3540S2NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2210 mArms	1565 µA	0.15	—	35 mm	40 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G681M3550S2NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2340 mArms	1565 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G681M3555S4NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2400 mArms	1565 µA	0.15	—	35 mm	55 mm	10 mm	Tin plating	S4	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CN31K332M2545S2NNYXX	CN3	Mass Production	有极性	80 V	3300 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	99 mΩ	120 Hz	1660 mArms	1541 µA	0.15	—	25 mm	45 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Snap-in	SW32G681M3555S2NNYXX	SW3	Mass Production	Polarized	400 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	129 mΩ	120 Hz	2400 mArms	1565 µA	0.15	—	35 mm	55 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	CW62F102M3545S2NNYXX	CW6	Mass Production	Polarized	315 V	1000 µF	-20%~+20%	-40 ~ 105 ℃	6000 h	190 mΩ	120 Hz	2410 mArms	1684 µA	0.2	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	High Ripple Current Capability,Low Impedance,Excellent Low-Temperature Performance,Long Service Life,Wide Temperature Range	—		Apply

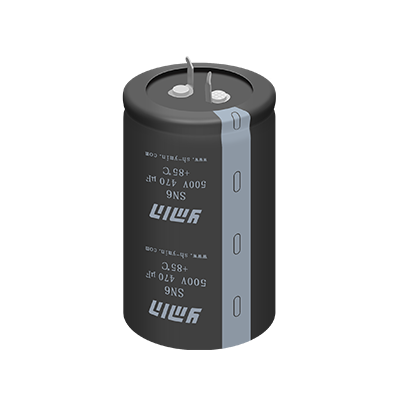

		Snap-in	SN62W561M3065S2NNYXX	SN6	Mass Production	有极性	450 V	560 µF	-20%~+20%	-25 ~ 85 ℃	6000 h	413 mΩ	120 Hz	2560 mArms	1506 µA	0.15	—	30 mm	65 mm	10 mm	镀锡	S2	0 g	72	—	—	—	Apply
		Snap-in	SW32W181M2530S2NNYXX	SW3	Mass Production	Polarized	450 V	180 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	467 mΩ	120 Hz	720 mArms	854 µA	0.15	—	25 mm	30 mm	10 mm	Tin plating	S2	0 g	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32D471M2235S2NNYXX	SW3	Mass Production	Polarized	200 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	420 mΩ	120 Hz	1390 mArms	920 µA	0.15	—	22 mm	35 mm	8.4 mm	Tin plating	S2	0 g	270	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW32G821M3550S2NNYXX	SW3	Mass Production	Polarized	400 V	820 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	103 mΩ	120 Hz	2480 mArms	1718 µA	0.15	—	35 mm	50 mm	10 mm	Tin plating	S2	0 g	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Bolt Type	EW32G152M5170M5YNYXX	EW3	Mass Production	Polarized	400 V	1500 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	50 mΩ	120 Hz	3370 mArms	2324 µA	0.15	—	51 mm	70 mm	22 mm	Tin plating	M5	0 g	40	Wide Temperature Stability,High Capacitance Range,Low Leakage Current,High Ripple Current Capability	—		Apply
		Snap-in	SN31H103M3535S2NNYXX	SN3	Mass Production	有极性	50 V	10000 µF	-20%~+20%	-40 ~ 85 ℃	3000 h	48 mΩ	120 Hz	2020 mArms	2121 µA	0.3	—	35 mm	35 mm	10 mm	镀锡	S2	0 g	100	—	—	—	Apply
		Snap-in	SW32G102M3565S4NNYXX	SW3	Mass Production	Polarized	400 V	1000 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	85 mΩ	120 Hz	2820 mArms	1897 µA	0.15	—	35 mm	65 mm	10 mm	Tin plating	S4	0 g	50	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
		Snap-in	SW62H680M2230S2NNYXX	SW6	Mass Production	有极性	500 V	68 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	3903 mΩ	120 Hz	510 mArms	553 µA	0.2	—	22 mm	30 mm	8.4 mm	镀锡	S2	0 g	405	—	—	—	Apply
		Snap-in	SW62H560M2525S2NNYXX	SW6	Mass Production	有极性	500 V	56 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	4736 mΩ	120 Hz	480 mArms	502 µA	0.2	—	25 mm	25 mm	10 mm	镀锡	S2	0 g	312	—	—	—	Apply
		Snap-in	SW62H470M2225S2NNYXX	SW6	Mass Production	有极性	500 V	47 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	5647 mΩ	120 Hz	390 mArms	460 µA	0.2	—	22 mm	25 mm	8.4 mm	镀锡	S2	0 g	405	—	—	—	Apply
		Snap-in	SW62H181M3530S2NNYXX	SW6	Mass Production	有极性	500 V	180 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	1474 mΩ	120 Hz	990 mArms	900 µA	0.2	—	35 mm	30 mm	10 mm	镀锡	S2	0 g	150	—	—	—	Apply
		Snap-in	SW62H121M2535S2NNYXX	SW6	Mass Production	有极性	500 V	120 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	2212 mΩ	120 Hz	710 mArms	735 µA	0.2	—	25 mm	35 mm	10 mm	镀锡	S2	0 g	208	—	—	—	Apply
		Snap-in	CW32W681M3545S2NNYXX	CW3	Mass Production	Polarized	450 V	680 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	254 mΩ	120 Hz	2040 mArms	1660 µA	0.2	—	35 mm	45 mm	10 mm	Tin plating	S2	0 g	100	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
		Snap-in	CW3H2W271M3030S2NNYXX	CW3H	Mass Production	Polarized	450 V	270 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	549 mΩ	120 Hz	1060 mArms	1046 µA	0.2	—	30 mm	30 mm	10 mm	Tin plating	S2	0 g	216	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	✓		Apply

1…474849…53
