Found 2,613 results

Package Form			Lifecycle Status	Polarity			Tolerance	Operating Temp. (℃)	Rated Life (Hours)	ESR (max.)	ESR Frequency	Rated Ripple Current	Leakage Current Max	tanδ max.	tanδ Frequency (Hz)		Dimension L (mm)	Terminal Pitch (mm)	Terminal Material	Terminal Type	Min. Package Qty	Feature Tags	AEC-Q200	PDF	3D-CAD
Bolt Type	ES32G472M77B5M6YNYXX	ES3	Mass Production	有极性	400 V	4700 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	3 mΩ	120 Hz	8490 mArms	4113 µA	0.18	—	77 mm	115 mm	32 mm	镀锡	M6	15	—	—	—	Apply
Snap-in	SN32V122M3565S2NNYXX	SN3	Mass Production	有极性	350 V	1200 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	167 mΩ	120 Hz	2130 mArms	1944 µA	0.15	—	35 mm	65 mm	10 mm	镀锡	S2	50	—	—	—	Apply
Bolt Type	ES32G682M77F5M6NMWXX	ES3	Mass Production	有极性	400 V	6800 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	16 mΩ	120 Hz	10490 mArms	4948 µA	0.18	—	77 mm	155 mm	32 mm	镀锡	M6	15	—	—	—	Apply
Snap-in	SW32W122M4070S2NNYXX	SW3	Mass Production	Polarized	450 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	79 mΩ	120 Hz	2720 mArms	2205 µA	0.15	—	40 mm	70 mm	10 mm	Tin plating	S2	40	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN32G151M2235S2NNYXX	SN3	Mass Production	有极性	400 V	150 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	1305 mΩ	120 Hz	580 mArms	735 µA	0.15	—	22 mm	35 mm	8.4 mm	镀锡	S2	270	—	—	—	Apply
Snap-in	CW3S2G331M3030S2NNYXX	CW3S	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	482 mΩ	120 Hz	1180 mArms	1090 µA	0.2	—	30 mm	30 mm	10 mm	Tin plating	S2	216	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
Snap-in	SN32G221M3030S2NNYXX	SN3	Mass Production	有极性	400 V	220 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	870 mΩ	120 Hz	690 mArms	890 µA	0.15	—	30 mm	30 mm	10 mm	镀锡	S2	216	—	—	—	Apply
Snap-in	SN32G331M3035S2NNYXX	SN3	Mass Production	有极性	400 V	330 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	589 mΩ	120 Hz	990 mArms	1090 µA	0.15	—	30 mm	35 mm	10 mm	镀锡	S2	144	—	—	—	Apply
Snap-in	SN32G331M3040S2NNYXX	SN3	Mass Production	有极性	400 V	330 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	589 mΩ	120 Hz	1030 mArms	1090 µA	0.15	—	30 mm	40 mm	10 mm	镀锡	S2	144	—	—	—	Apply
Snap-in	SW31H332M2525S2NNWXX	SW3	Mass Production	Polarized	50 V	3300 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	120 mΩ	120 Hz	1910 mArms	1219 µA	0.3	—	25 mm	25 mm	10 mm	Tin plating	S2	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN32G821M3060S2NNYXX	SN3	Mass Production	有极性	400 V	820 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	241 mΩ	120 Hz	1580 mArms	1718 µA	0.15	—	30 mm	60 mm	10 mm	镀锡	S2	72	—	—	—	Apply
Snap-in	SN32G821M3545S2NNYXX	SN3	Mass Production	有极性	400 V	820 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	241 mΩ	120 Hz	1560 mArms	1718 µA	0.15	—	35 mm	45 mm	10 mm	镀锡	S2	100	—	—	—	Apply
Snap-in	SN32G102M3560S2NNYXX	SN3	Mass Production	有极性	400 V	1000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	224 mΩ	120 Hz	1780 mArms	1897 µA	0.15	—	35 mm	60 mm	10 mm	镀锡	S2	50	—	—	—	Apply
Snap-in	SW32W151M2525S2NNYXX	SW3	Mass Production	Polarized	450 V	150 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	561 mΩ	120 Hz	630 mArms	779 µA	0.15	—	25 mm	25 mm	10 mm	Tin plating	S2	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN32G102M3565S2NNYXX	SN3	Mass Production	有极性	400 V	1000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	224 mΩ	120 Hz	1820 mArms	1897 µA	0.15	—	35 mm	65 mm	10 mm	镀锡	S2	50	—	—	—	Apply
Snap-in	SN32G122M3570S2NNYXX	SN3	Mass Production	有极性	400 V	1200 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	201 mΩ	120 Hz	1920 mArms	2078 µA	0.15	—	35 mm	70 mm	10 mm	镀锡	S2	50	—	—	—	Apply
Snap-in	SN32W221M2540S2NNYXX	SN3	Mass Production	有极性	450 V	220 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	890 mΩ	120 Hz	550 mArms	944 µA	0.2	—	25 mm	40 mm	10 mm	镀锡	S2	208	—	—	—	Apply

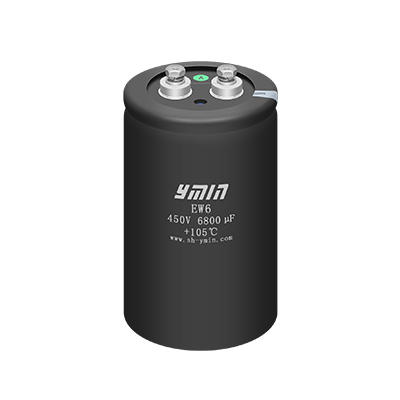

Bolt Type	EW62W682M77H0M6YNYXX	EW6	Mass Production	有极性	450 V	6800 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	11 mΩ	120 Hz	17290 mArms	5000 µA	0.15	—	77 mm	170 mm	32 mm	镀锡	M6	15	—	—	—	Apply
Bolt Type	EW62W103M90H0M6YNYXX	EW6	Mass Production	有极性	450 V	10000 µF	-20%~+20%	-25 ~ 105 ℃	6000 h	8 mΩ	120 Hz	23750 mArms	5000 µA	0.15	—	90 mm	170 mm	32 mm	镀锡	M6	12	—	—	—	Apply
Snap-in	SN32W331M2550SSNNYXX	SN3	Mass Production	有极性	450 V	330 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	598 mΩ	120 Hz	770 mArms	1156 µA	0.2	—	25 mm	50 mm	10 mm	镀锡	S2	208	—	—	—	Apply
Snap-in	SN32W561M3550S2NNYXX	SN3	Mass Production	有极性	450 V	560 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	355 mΩ	120 Hz	1210 mArms	1506 µA	0.2	—	35 mm	50 mm	10 mm	镀锡	S2	100	—	—	—	Apply
Snap-in	SN61V173M3045S2NNYXX	SN6	Mass Production	有极性	35 V	15000 µF	-20%~+20%	-40 ~ 85 ℃	6000 h	35 mΩ	120 Hz	2410 mArms	2174 µA	0.4	—	30 mm	45 mm	10 mm	镀锡	S2	144	—	—	—	Apply
Snap-in	SN32G681M3550S2NNYXX	SN3	Mass Production	有极性	400 V	680 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	285 mΩ	120 Hz	1510 mArms	1565 µA	0.15	—	35 mm	50 mm	10 mm	镀锡	S2	100	—	—	—	Apply
Snap-in	CW32W681M3050S2NNYXX	CW3	Mass Production	Polarized	450 V	680 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	254 mΩ	120 Hz	1960 mArms	1660 µA	0.2	—	30 mm	50 mm	10 mm	Tin plating	S2	144	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
Snap-in	SW32A222M3035S2NNYXX	SW3	Mass Production	Polarized	100 V	2200 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	120 mΩ	120 Hz	2440 mArms	1407 µA	0.2	—	30 mm	35 mm	10 mm	Tin plating	S2	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW32D122M3030S2NNYXX	SW3	Mass Production	Polarized	200 V	1200 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	163 mΩ	120 Hz	2050 mArms	1470 µA	0.15	—	30 mm	30 mm	10 mm	Tin plating	S2	216	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN62A472M3550S2NNYXX	SN6	Mass Production	有极性	100 V	4700 µF	-20%~+20%	-40 ~ 85 ℃	6000 h	57 mΩ	120 Hz	2350 mArms	2057 µA	0.2	—	35 mm	50 mm	10 mm	镀锡	S2	100	—	—	—	Apply
Snap-in	SW32D331M2230S2NNYXX	SW3	Mass Production	Polarized	200 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	601 mΩ	120 Hz	1300 mArms	771 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN62G182M4090S2NNYXX	SN6	Mass Production	有极性	400 V	1800 µF	-20%~+20%	-25 ~ 85 ℃	6000 h	121 mΩ	120 Hz	3450 mArms	2546 µA	0.15	—	40 mm	90 mm	10 mm	镀锡	S4	40	—	—	—	Apply
Snap-in	SW32W101M2230S2NNYXX	SW3	Mass Production	Polarized	450 V	100 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	841 mΩ	120 Hz	500 mArms	636 µA	0.15	—	22 mm	30 mm	8.4 mm	Tin plating	S2	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SN62W102M3570S4NNYXX	SN6	Mass Production	有极性	450 V	1000 µF	-20%~+20%	-25 ~ 85 ℃	6000 h	283 mΩ	120 Hz	1930 mArms	2012 µA	0.15	—	35 mm	70 mm	10 mm	镀锡	S4	50	—	—	—	Apply
Snap-in	SW31E333M3550S2NNYXX	SW3	Mass Production	Polarized	25 V	33000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	16 mΩ	120 Hz	5360 mArms	2725 µA	0.5	—	35 mm	50 mm	10 mm	Tin plating	S2	100	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31V332M2230S2NNYXX	SW3	Mass Production	Polarized	35 V	3300 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	139 mΩ	120 Hz	1430 mArms	1020 µA	0.4	—	22 mm	30 mm	8.4 mm	Tin plating	S2	405	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	CW32W151M3025S2NNYXX	CW3	Mass Production	Polarized	450 V	150 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	1149 mΩ	120 Hz	710 mArms	779 µA	0.2	—	30 mm	25 mm	10 mm	Tin plating	S2	216	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
Snap-in	SW32G331M3040S2NNYXX	SW3	Mass Production	Polarized	400 V	330 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	242 mΩ	120 Hz	1590 mArms	1090 µA	0.15	—	30 mm	40 mm	10 mm	Tin plating	S2	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31V103M2535S2NNYXX	SW3	Mass Production	Polarized	35 V	10000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	43 mΩ	120 Hz	2670 mArms	1775 µA	0.4	—	25 mm	35 mm	10 mm	Tin plating	S2	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW32E681M2535S2NNYXX	SW3	Mass Production	Polarized	250 V	680 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	291 mΩ	120 Hz	1510 mArms	1237 µA	0.15	—	25 mm	35 mm	10 mm	Tin plating	S2	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31V473M4080S2NNYXX	SW3	Mass Production	Polarized	35 V	47000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	9.7 mΩ	120 Hz	8570 mArms	3848 µA	0.4	—	40 mm	80 mm	10 mm	Tin plating	S2	40	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW32G471M3035S2NNYXX	SW3	Mass Production	Polarized	400 V	470 µF	-20%~+20%	-25 ~ 105 ℃	3000 h	177 mΩ	120 Hz	1770 mArms	1301 µA	0.15	—	30 mm	35 mm	10 mm	Tin plating	S2	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31G393M2580S2NNYXX	SW3	Mass Production	Polarized	40 V	39000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	9.1 mΩ	120 Hz	8440 mArms	3747 µA	0.3	—	25 mm	80 mm	10 mm	Tin plating	S2	104	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	CW3S2W471M3045S2NNYXX	CW3S	Mass Production	Polarized	450 V	470 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	367 mΩ	120 Hz	1540 mArms	1380 µA	0.2	—	30 mm	45 mm	10 mm	Tin plating	S2	144	High Capacitance Density，Low ESR，High Ripple Current，High Temperature Long Life，Low Temperature Rise，Small Capacitance Degradation	—		Apply
Snap-in	SW31H472M2540S2NNYXX	SW3	Mass Production	Polarized	50 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	82 mΩ	120 Hz	2570 mArms	1454 µA	0.3	—	25 mm	40 mm	10 mm	Tin plating	S2	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31H472M3025S2NNYXX	SW3	Mass Production	Polarized	50 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	82 mΩ	120 Hz	2490 mArms	1454 µA	0.3	—	30 mm	25 mm	10 mm	Tin plating	S2	216	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31H562M2540S2NNYXX	SW3	Mass Production	Polarized	50 V	5600 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	69 mΩ	120 Hz	2860 mArms	1587 µA	0.3	—	25 mm	40 mm	10 mm	Tin plating	S2	208	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Bolt Type	ES3M2E103M64B0M5YNYXX	ES3M	Mass Production	有极性	250 V	10000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	7.1 mΩ	120 Hz	9350 mArms	4743 µA	0.18	—	64 mm	110 mm	28.3 mm	镀锡	M5	24	—	—	—	Apply
Snap-in	SW31H123M3045S2NNYXX	SW3	Mass Production	Polarized	50 V	12000 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	31 mΩ	120 Hz	4170 mArms	2324 µA	0.3	—	30 mm	45 mm	10 mm	Tin plating	S2	144	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31J222M2530S2NNYXX	SW3	Mass Production	Polarized	63 V	2200 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	120 mΩ	120 Hz	1760 mArms	1117 µA	0.2	—	25 mm	30 mm	10 mm	Tin plating	S2	312	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Snap-in	SW31J472M2235S2NNYXX	SW3	Mass Production	Polarized	63 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	52 mΩ	120 Hz	2420 mArms	1632 µA	0.2	—	22 mm	35 mm	8.4 mm	Tin plating	S2	270	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply
Bolt Type	ES32G223M90P0M6YNYXX	ES3	Mass Production	有极性	400 V	22000 µF	-20%~+20%	-25 ~ 85 ℃	3000 h	7 mΩ	120 Hz	26070 mArms	5000 µA	0.18	—	90 mm	250 mm	32 mm	镀锡	M6	12	—	—	—	Apply
Snap-in	SW31J472M3530S2NNYXX	SW3	Mass Production	Polarized	63 V	4700 µF	-20%~+20%	-40 ~ 105 ℃	3000 h	53 mΩ	120 Hz	2900 mArms	1632 µA	0.2	—	35 mm	30 mm	10 mm	Tin plating	S2	150	Wide Operating Temperature,Low Leakage Current,High Ripple Current Capability,Low ESR	—		Apply

1…45 46 47…53
