Found 670 results
| Compare | Package Form | Product Image | Product Line | Lifecycle Status | Polarity | Tolerance | Operating Temp. (℃) | Rated Life (Hours) | ESR (max.) | ESR Frequency | Rated Ripple Current | 72h Leakage Current (μA) | Max Charge Voltage (V) | Max Charge Current (A) | Peak Current (A) | Continuous Current (A) | Terminal Pitch (mm) | Terminal Material | Weight | Min. Package Qty | Feature Tags | Remark | Dimension L (mm) | AEC-Q200 | 3D-CAD | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Module Type |  | Electric Double-Layer Supercapacitor | SDM5R5M1041012 | SDM | Mass Production | polarized | 5.5 V | 0.1 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 1200 mΩ | 1 kHz | 0 mArms | 2 µA | 5.5 V | 0.0530888030888031 A | 0.233050847457627 A | 0.0530888030888031 A | 7 mm | tin | 0 g | 200 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 5 mm | 10 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDLH2R7L1050812 | SDL(H) | Mass Production | polarized | 2.7 V | 1 F | -10%~+30% | -40 ~ 105 ℃ | 1000 h | 160 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.25763358778626 A | 1.08870967741935 A | 0.25763358778626 A | 3.5 mm | tin | 0 g | 500 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 11.5 mm | ✓ | Apply | ||

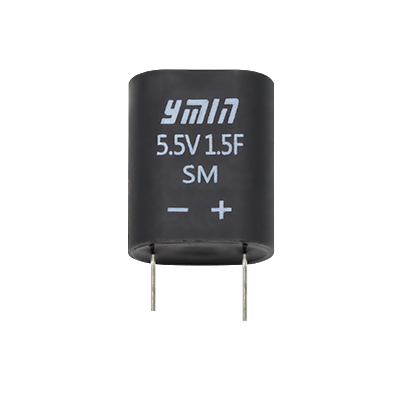

| Module Type |  | Electric Double-Layer Supercapacitor | SMG5R5M1551924 | SM(G) | Mass Production | polarized | 5.5 V | 1.5 F | 0%~+30% | -40 ~ 85 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 6 µA | 5.5 V | 0.756880733944954 A | 2.8448275862069 A | 0.756880733944954 A | 11.5 mm | tin | 0 g | 256 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 10 mm | 18.5 mm | — | Apply | ||
| Module Type |  | Electric Double-Layer Supercapacitor | SDMH5R5M3552022 | SDM(H) | Mass Production | polarized | 5.5 V | 3.5 F | -10%~+30% | -40 ~ 105 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 12 µA | 5.5 V | 1.67829119442023 A | 5.54755043227666 A | 1.67829119442023 A | 15.5 mm | tin | 0 g | 125 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 10 mm | 20 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SMG5R5M1551824 | SM(G) | Mass Production | polarized | 5.5 V | 1.5 F | 0%~+30% | -40 ~ 85 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 6 µA | 5.5 V | 0.756880733944954 A | 2.8448275862069 A | 0.756880733944954 A | 11.5 mm | tin | 0 g | 750 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 9.5 mm | 18 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDLH2R7L3350820 | SDL(H) | Mass Production | polarized | 2.7 V | 3.3 F | -10%~+30% | -40 ~ 105 ℃ | 1000 h | 80 mΩ | 1 kHz | — | 6 µA | 2.7 V | 0.825611564121572 A | 3.19126074498567 A | 0.825611564121572 A | 3.5 mm | tin | 0 g | 500 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 20 mm | ✓ | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDMH5R5M1551622 | SDM(H) | Mass Production | polarized | 5.5 V | 1.5 F | -10%~+30% | -40 ~ 105 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 6 µA | 5.5 V | 0.756880733944954 A | 2.8448275862069 A | 0.756880733944954 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M2551324 | SDM | Mass Production | polarized | 5.5 V | 2.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 10 µA | 5.5 V | 1.24434389140271 A | 4.50819672131148 A | 1.24434389140271 A | 9 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 6.3 mm | 13 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDS2R7L5040509 | SDS | Mass Production | polarized | 2.7 V | 0.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 1200 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.114406779661017 A | 0.355263157894737 A | 0.114406779661017 A | 2 mm | tin | 0 g | 1000 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 5 mm | 9 mm | — | Apply | ||
| Module Type |  | Electric Double-Layer Supercapacitor | SM5R5M1051820 | SM | Mass Production | polarized | 5.5 V | 1 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 4 µA | 5.5 V | 0.513059701492537 A | 2.02205882352941 A | 0.513059701492537 A | 11.5 mm | tin | 0 g | 750 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 9.5 mm | 18 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDBG3R0L4050820 | SDB(G) | Mass Production | polarized | 3 V | 4 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 6 µA | 3 V | 1.07142857142857 A | 3.75 A | 1.07142857142857 A | 3.5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量3.3F参考 | 8 mm | 20 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDBG3R0L1050812 | SDB(G) | Mass Production | polarized | 3 V | 1 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 3 µA | 3 V | 0.279850746268657 A | 1.10294117647059 A | 0.279850746268657 A | 3.5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 11.5 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SMG6R0M5041816 | SM(G) | Mass Production | polarized | 6 V | 0.5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 400 mΩ | 1 kHz | — | 2 µA | 6 V | 0.283018867924528 A | 1.15384615384615 A | 0.283018867924528 A | 11.5 mm | tin | 0 g | 750 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 9.5 mm | 17.5 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SMG6R0M2051824 | SM(G) | Mass Production | polarized | 6 V | 2 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 8 µA | 6 V | 1.1070110701107 A | 4.22535211267606 A | 1.1070110701107 A | 11.5 mm | tin | 0 g | 750 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 9.5 mm | 18 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SM5R5M2241213 | SM | Mass Production | polarized | 5.5 V | 0.22 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 800 mΩ | 1 kHz | — | 2 µA | 5.5 V | 0.114931610942249 A | 0.478639240506329 A | 0.114931610942249 A | 7 mm | tin | 0 g | 150 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 6.5 mm | 11.5 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SM5R5M3341414 | SM | Mass Production | polarized | 5.5 V | 0.33 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 800 mΩ | 1 kHz | — | 2 µA | 5.5 V | 0.168180133432172 A | 0.650071633237822 A | 0.168180133432172 A | 9 mm | tin | 0 g | 100 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 8 mm | 14 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SM5R5M2241414 | SM | Mass Production | polarized | 5.5 V | 0.22 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 800 mΩ | 1 kHz | — | 2 µA | 5.5 V | 0.114931610942249 A | 0.478639240506329 A | 0.114931610942249 A | 9 mm | tin | 0 g | 100 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 8 mm | 14 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDLG2R7L3540509 | SDL（G） | Mass Production | polarized | 2.7 V | 0.35 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 160 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.0929386309992132 A | 0.435885608856089 A | 0.0929386309992132 A | 2 mm | tin | 0 g | 1000 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量1F参考 | 5 mm | 9 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M1551618 | SDM | Mass Production | polarized | 5.5 V | 1.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 6 µA | 5.5 V | 0.756880733944954 A | 2.8448275862069 A | 0.756880733944954 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDB3R0L3350815 | SDB | Mass Production | polarized | 3 V | 3.3 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 6 µA | 3 V | 0.900818926296633 A | 3.31103678929766 A | 0.900818926296633 A | 3.5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 15 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L2050612 | SDS | Mass Production | polarized | 2.7 V | 2 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 300 mΩ | 1 kHz | — | 6 µA | 2.7 V | 0.457627118644068 A | 1.42105263157895 A | 0.457627118644068 A | 2.5 mm | tin | 0 g | 1000 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 6.3 mm | 12 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SMG6R0M2051924 | SM(G) | Mass Production | polarized | 6 V | 2 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 8 µA | 6 V | 1.1070110701107 A | 4.22535211267606 A | 1.1070110701107 A | 11.5 mm | tin | 0 g | 750 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 10 mm | 18.5 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDMH5R5M1051615 | SDM(H) | Mass Production | polarized | 5.5 V | 1 F | -10%~+30% | -40 ~ 105 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 4 µA | 5.5 V | 0.513059701492537 A | 2.02205882352941 A | 0.513059701492537 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M1051614 | SDM | Mass Production | polarized | 5.5 V | 1 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 4 µA | 5.5 V | 0.513059701492537 A | 2.02205882352941 A | 0.513059701492537 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L7050825 | SDS | Mass Production | polarized | 2.7 V | 7 F | 0%~+30% | -40 ~ 70 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 25 µA | 2.7 V | 1.56198347107438 A | 4.60975609756098 A | 1.56198347107438 A | 3.5 mm | tin | 0 g | 400 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 25 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L5040412 | SDS | Mass Production | polarized | 2.7 V | 0.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 1200 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.114406779661017 A | 0.355263157894737 A | 0.114406779661017 A | 1.5 mm | tin | 0 g | 1000 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 4 mm | 12 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDH2R7L3040509 | SDH | Mass Production | Polarized | 2.7 V | 0.3 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 160 mΩ | 1 kHz | — | 4 µA | 2.7 V | 0.0798501577287066 A | 0.377798507462687 A | 0.0798501577287066 A | 2 mm | tin | 0 g | 1000 | RoHS, high capacitance, low ESR, fast charge & discharge, long service life | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量1F参考 | 5 mm | 9 mm | ✓ | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDB3R0L5051016 | SDB | Mass Production | polarized | 3 V | 5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 80 mΩ | 1 kHz | — | 10 µA | 3 V | 1.33928571428571 A | 4.6875 A | 1.33928571428571 A | 5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 10 mm | 16 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDLG2R7L1550812 | SDL（G） | Mass Production | polarized | 2.7 V | 1.5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 120 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.384250474383302 A | 1.59448818897638 A | 0.384250474383302 A | 3.5 mm | tin | 0 g | 1000 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量1F参考 | 8 mm | 12 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L3350622 | SDS | Mass Production | polarized | 2.7 V | 3.3 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 14 µA | 2.7 V | 0.743739565943239 A | 2.23869346733668 A | 0.743739565943239 A | 2.5 mm | tin | 0 g | 750 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 6.3 mm | 22 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDBG3R0L5050825 | SDB(G) | Mass Production | polarized | 3 V | 5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 80 mΩ | 1 kHz | — | 10 µA | 3 V | 1.33928571428571 A | 4.6875 A | 1.33928571428571 A | 3.5 mm | tin | 0 g | 400 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 25 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM6R0M3552022 | SDM | Mass Production | polarized | 6 V | 3.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 12 µA | 6 V | 1.8308631211857 A | 6.05187319884726 A | 1.8308631211857 A | 15.5 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 10 mm | 20 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDH2R7L2061325 | SDH | Mass Production | Polarized | 2.7 V | 20 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 28 mΩ | 1 kHz | — | 50 µA | 2.7 V | 4.62328767123288 A | 14.6739130434783 A | 4.62328767123288 A | 5 mm | tin | 0 g | 100 | RoHS, high capacitance, low ESR, fast charge & discharge, long service life | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 12.5 mm | 25 mm | ✓ | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L2561325 | SDS | Mass Production | polarized | 2.7 V | 25 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 60 mΩ | 1 kHz | — | 60 µA | 2.7 V | 4.6551724137931 A | 10.3846153846154 A | 4.6551724137931 A | 5 mm | tin | 0 g | 100 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量20F参考 | 12.5 mm | 25 mm | — | Apply | ||
| Module Type |  | Electric Double-Layer Supercapacitor | SDMG5R5M4741614 | SDM(G) | Mass Production | polarized | 5.5 V | 0.47 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 600 mΩ | 1 kHz | — | 2 µA | 5.5 V | 0.238336713995943 A | 0.908292340126493 A | 0.238336713995943 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SMG5R5M1552224 | SM(G) | Mass Production | polarized | 5.5 V | 1.5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 200 mΩ | 1 kHz | — | 6 µA | 5.5 V | 0.756880733944954 A | 2.8448275862069 A | 0.756880733944954 A | 15.5 mm | tin | 0 g | 50 | Polarized, High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Wide Temperature Range, Reflow Soldering Available, Smart Water Meter, Smart Gas Meter | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量NoneF参考 | 11 mm | 21.5 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDS2R7L3040409 | SDS | Mass Production | polarized | 2.7 V | 0.3 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 1200 mΩ | 1 kHz | — | 2 µA | 2.7 V | 0.0731046931407942 A | 0.262987012987013 A | 0.0731046931407942 A | 1.5 mm | tin | 0 g | 1000 | High Energy Density, Long Cycle Life, Low Self-discharge, Wide Temperature Range, Fast Charge & Discharge, Polarized, Leaded | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算；漏电流按附件三同系列邻近容量0.5F参考 | 4 mm | 9 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDA2R7L7051020 | SDA | Mass Production | polarized | 2.7 V | 7 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 70 mΩ | 1 kHz | — | 14 µA | 2.7 V | 1.64777680906713 A | 5.44668587896254 A | 1.64777680906713 A | 5 mm | tin | 0 g | 672 | SDA, EDLC (Electric Double Layer Capacitor), Polarized, High-capacity Standard Grade, Leaded, RoHS Compliant, Low ESR, Low Self-discharge | — | 10 mm | 20 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDLG2R7L5050820 | SDL（G） | Mass Production | polarized | 2.7 V | 5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 60 mΩ | 1 kHz | — | 10 µA | 2.7 V | 1.23853211009174 A | 4.6551724137931 A | 1.23853211009174 A | 3.5 mm | tin | 0 g | 500 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 20 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M3551627 | SDM | Mass Production | polarized | 5.5 V | 3.5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 140 mΩ | 1 kHz | — | 12 µA | 5.5 V | 1.67829119442023 A | 5.54755043227666 A | 1.67829119442023 A | 11.5 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M1062532 | SDM | Mass Production | polarized | 5.5 V | 10 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 50 mΩ | 1 kHz | — | 44 µA | 5.5 V | 4.78260869565217 A | 15.7142857142857 A | 4.78260869565217 A | 17.5 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 12.5 mm | 25 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM6R0M1062532 | SDM | Mass Production | polarized | 6 V | 10 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 50 mΩ | 1 kHz | — | 44 µA | 6 V | 5.21739130434783 A | 17.1428571428571 A | 5.21739130434783 A | 17.5 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 12.5 mm | 25 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDB3R0L3350816 | SDB | Mass Production | polarized | 3 V | 3.3 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 6 µA | 3 V | 0.900818926296633 A | 3.31103678929766 A | 0.900818926296633 A | 3.5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDMG5R5M5052027 | SDM(G) | Mass Production | polarized | 5.5 V | 5 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 20 µA | 5.5 V | 2.39130434782609 A | 7.85714285714286 A | 2.39130434782609 A | 15.5 mm | tin | 0 g | 400 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 10 mm | 20 mm | — | Apply | ||
| Module Type |  | Electric Double-Layer Supercapacitor | SDMR5R5M1051618 | SDM(R) | Mass Production | polarized | 5.5 V | 1 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 4 µA | 5.5 V | 0.513059701492537 A | 2.02205882352941 A | 0.513059701492537 A | 11.5 mm | tin | 0 g | 250 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDMR5R5M1051614 | SDM(R) | Mass Production | polarized | 5.5 V | 1 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 4 µA | 5.5 V | 0.513059701492537 A | 2.02205882352941 A | 0.513059701492537 A | 11.5 mm | tin | 0 g | 50 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Radial Lead | | Electric Double-Layer Supercapacitor | SDLG2R7L2061325 | SDL（G） | Mass Production | polarized | 2.7 V | 20 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 28 mΩ | 1 kHz | — | 40 µA | 2.7 V | 4.62328767123288 A | 14.6739130434783 A | 4.62328767123288 A | 5 mm | tin | 0 g | 100 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 12.5 mm | 25 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDLR2R7L2050816 | SDL(R) | Mass Production | polarized | 2.7 V | 2 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 120 mΩ | 1 kHz | — | 4 µA | 2.7 V | 0.503731343283582 A | 1.98529411764706 A | 0.503731343283582 A | 3.5 mm | tin | 0 g | 500 | EDLC (Electric Double Layer Capacitor), Polarized, Leaded, High Capacity, Ultra Low ESR, Fast Charge & Discharge, Low Self-discharge, Short-time High Current Output, Smart Meter, Industrial Power Supp | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 16 mm | — | Apply | ||
| Module Type | | Electric Double-Layer Supercapacitor | SDM5R5M5052027 | SDM | Mass Production | polarized | 5.5 V | 5 F | -10%~+30% | -40 ~ 70 ℃ | 1000 h | 100 mΩ | 1 kHz | — | 20 µA | 5.5 V | 2.39130434782609 A | 7.85714285714286 A | 2.39130434782609 A | 15.5 mm | tin | 0 g | 100 | High Energy Density, High Power Output, Low ESR, Low Leakage Current, Long Cycle Life, Polarized, Smart Instrument, Server Power-loss Protection (PLP) | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 10 mm | 20 mm | — | Apply | ||
| Radial Lead |  | Electric Double-Layer Supercapacitor | SDBR3R0L1050813 | SDB(R) | Mass Production | polarized | 3 V | 1 F | -10%~+30% | -40 ~ 85 ℃ | 1000 h | 240 mΩ | 1 kHz | — | 3 µA | 3 V | 0.279850746268657 A | 1.10294117647059 A | 0.279850746268657 A | 3.5 mm | tin | 0 g | 500 | High Capacity, Low ESR, Low Self-discharge, Long Cycle Life, Leaded, Polarized | ESR参考2026目录同系列同/邻近容量尺寸；电流按目录值或附件一公式计算 | 8 mm | 13 mm | — | Apply |
