Polymer Solid Aluminum Electrolytic Capacitor
VPLB0771C101MVTM
Mass ProductionVPL Series · SMD
High CapacitanceLow ESRHigh Ripple Current WithstandLow Leakage CurrentHigh ReliabilityLong Service LifeWide Temperature RangeReflow Soldering Support
Rated Voltage (V)
16 V
Nominal Capacitance
100 µF
Operating Temp
-55 ~ 105 ℃
ESR (max)
30 mΩ
Rated Lifetime
5000 h
Package Size
ø5 × 7.7 mm
Online Store
Min. Order Qty:900
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor CategoryPolymer Solid Aluminum Electrolytic Capacitor
ShapeSMD
Part NumberVPLB0771C101MVTM
SeriesVPL
Lifecycle StatusMass Production
Rated Voltage (V)16
Nominal Capacitance100 µF
ESR (max.)30 mΩ
PolarityPolarized
Min Operating Temp (°C)-55
Max Operating Temp (°C)105
Rated Lifetime (Hours)5000
Rated Ripple Current2200 mArms
ESR Frequency100 kHz
Diameter D (mm)5
Height L (mm)7.7
Terminal Pitch (mm)2
Min. Package Qty900
Tolerance-20%~+20%
Leakage Current (µA) Max500
Dissipation Factor (tanδ max.)8
Terminal Plating MaterialIron Core, Copper Plated, Tin Coated
Weight (g)0.1
Remarks—
Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number

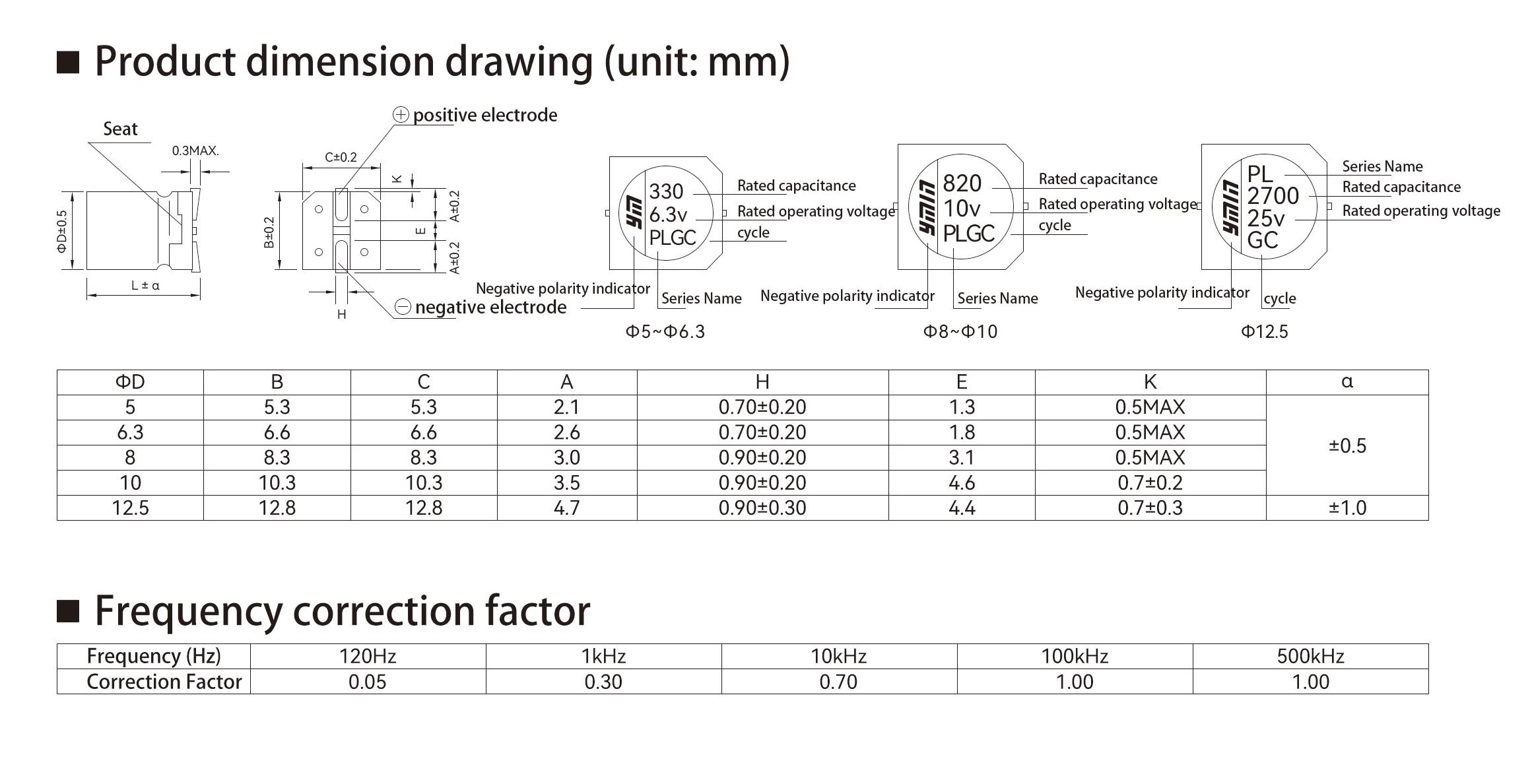

Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 5 |
| Height (L) | L | 7.7 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 2200 mArms | — | 30 mΩ | 100 kHz |
