liquid aluminum electrolytic capacitor
VKL(T)D0621V560MVTMCG
Mass ProductionVKL(T) Series · SMD
Low Leakage CurrentHigh Temp ResistantLong Life @ High TempHigh Ripple Current
Product image pending
liquid aluminum electrolytic capacitor · VKL(T)D0621V560MVTMCG
Rated Voltage (V)
35 V
Nominal Capacitance
56 µF
Operating Temp
-40 ~ 125 ℃
ESR (max)
0.9 Ω
Rated Lifetime
1000 h
Package Size
ø8 × 6.2 mm
Online Store
Min. Order Qty:800
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor Categoryliquid aluminum electrolytic capacitor
ShapeSMD
Part NumberVKL(T)D0621V560MVTMCG
SeriesVKL(T)
Lifecycle StatusMass Production
Rated Voltage (V)35
Nominal Capacitance56 µF
ESR (max.)0.9 Ω
PolarityPolarized
Min Operating Temp (°C)-40
Max Operating Temp (°C)125
Rated Lifetime (Hours)1000
Rated Ripple Current130 mArms
ESR Frequency100 kHz
Diameter D (mm)8
Height L (mm)6.2
Terminal Pitch (mm)3.1±0.2
Min. Package Qty800
Tolerance-20%~+20%
Leakage Current (µA) Max19.6
Dissipation Factor (tanδ max.)14
Terminal Plating Materialtin
Weight (g)0.1
Dissipation Factor Frequency (Hz)120
Remarks—

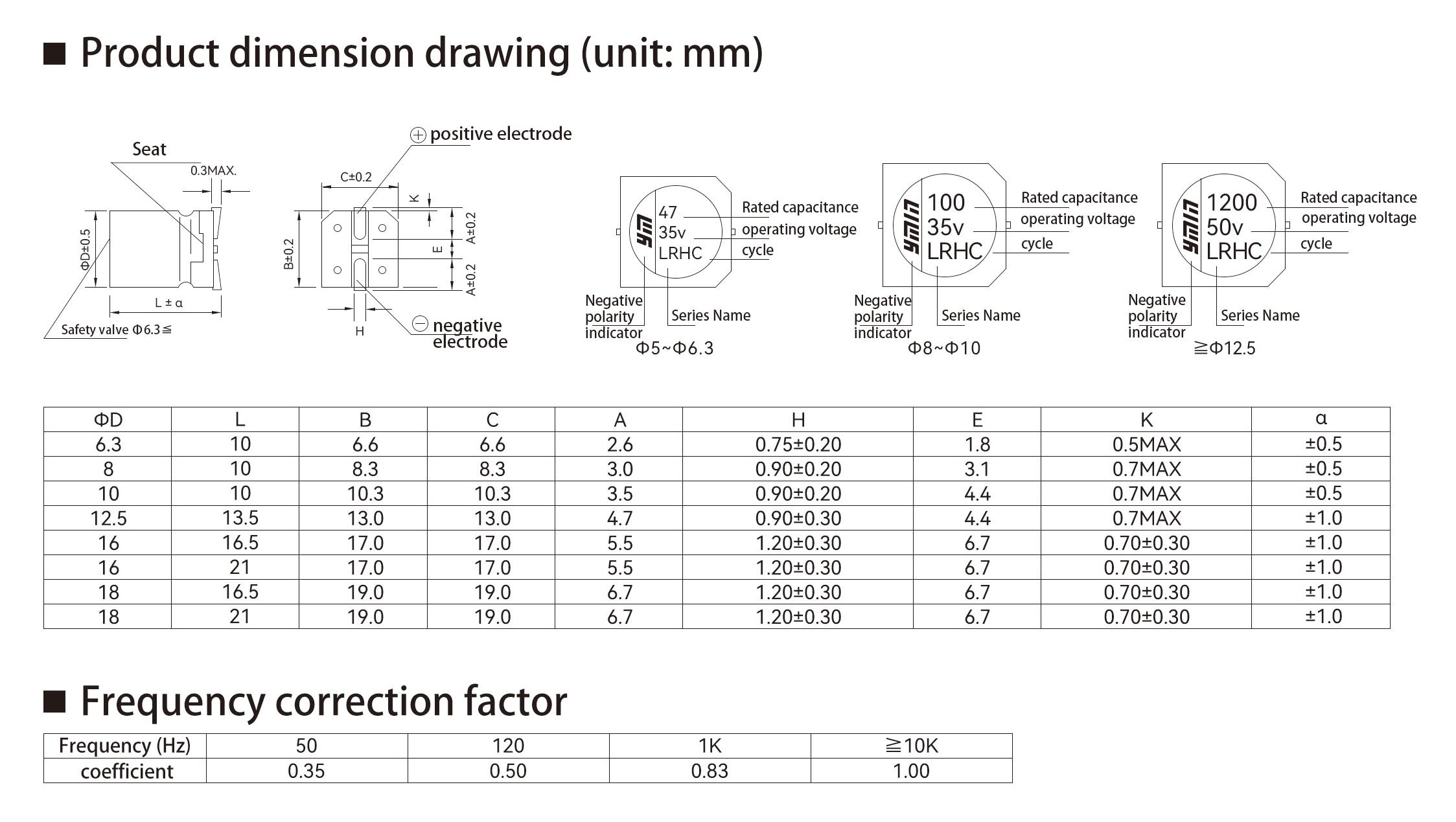

Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number
Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 8 |
| Height (L) | L | 6.2 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 130 mArms | — | 0.9 Ω | 100 kHz |
Series technical drawing to be added to the library
Design Tools & Resources
Lifetime Calculator
Online lifetime estimation
3D-CAD Models
STEP / IGES
RoHS/REACH
Compliance certificates
Product PDF
Product datasheet
Cross Reference
The current YMIN part can replace these competitor parts. Verify specifications and application conditions before selection.
Loading cross references…
For replacement options of discontinued models, please contact technical support.
