liquid aluminum electrolytic capacitor
VKG(U)C1001K120MVTM
Mass ProductionVKG(U) Series · SMD
Ultra-slim heightLong lifeWide voltage & wide temperature rangeCompact sizeLow leakage current
Rated Voltage (V)
80 V
Nominal Capacitance
12 µF
Operating Temp
-55 ~ 105 ℃
ESR (max)
—
Rated Lifetime
13000 h
Package Size
ø6.3 × 10 mm
Online Store
Min. Order Qty:700
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor Categoryliquid aluminum electrolytic capacitor
ShapeSMD
Part NumberVKG(U)C1001K120MVTM
SeriesVKG(U)
Lifecycle StatusMass Production
Rated Voltage (V)80
Nominal Capacitance12 µF
ESR (max.)—
PolarityPolarized
Min Operating Temp (°C)-55
Max Operating Temp (°C)105
Rated Lifetime (Hours)13000
Rated Ripple Current150 mArms
ESR Frequency100 kHz
Diameter D (mm)6.3
Height L (mm)10
Terminal Pitch (mm)1.8±0.2
Min. Package Qty700
Tolerance-20%~+20%
Leakage Current (µA) Max9.6
Dissipation Factor (tanδ max.)12
Terminal Plating Materialtin
Weight (g)0.1
Dissipation Factor Frequency (Hz)120
Remarks—
Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number

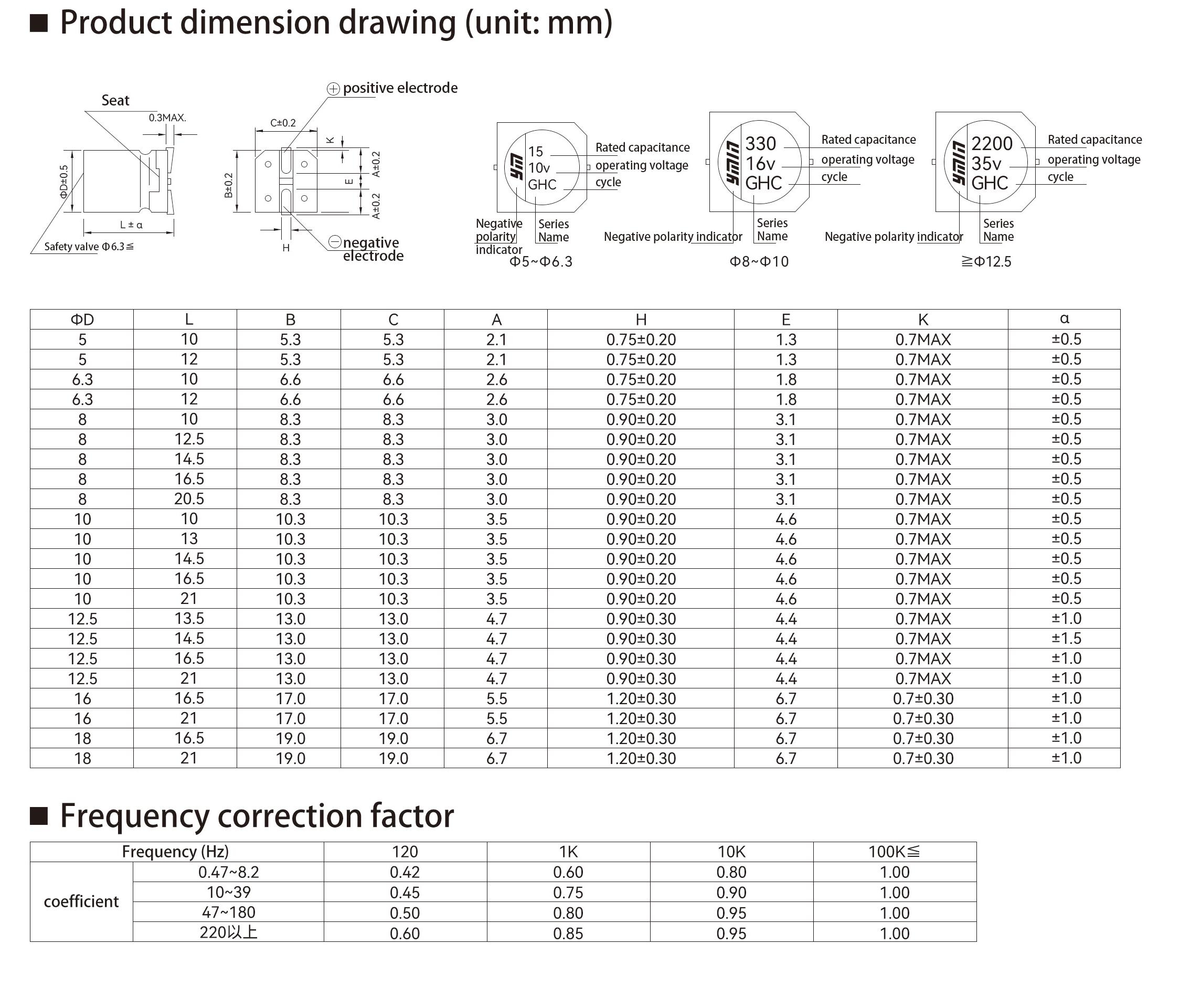

Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 6.3 |
| Height (L) | L | 10 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 150 mArms | — | — | 100 kHz |
