liquid aluminum electrolytic capacitor
V3MCC0771E331MVTMCG
Mass ProductionV3MC Series · SMD
超高容量密度、超低 ESR、高纹波电流、耐高温回流焊
Rated Voltage (V)
25 V
Nominal Capacitance
330 µF
Operating Temp
-55 ~ 105 ℃
ESR (max)
0.24 Ω
Rated Lifetime
2000 h
Package Size
ø6.3 × 7.7 mm
Online Store
Min. Order Qty:900
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor Categoryliquid aluminum electrolytic capacitor
ShapeSMD
Part NumberV3MCC0771E331MVTMCG
SeriesV3MC
Lifecycle StatusMass Production
Rated Voltage (V)25
Nominal Capacitance330 µF
ESR (max.)0.24 Ω
Polarity有
Min Operating Temp (°C)-55
Max Operating Temp (°C)105
Rated Lifetime (Hours)2000
Rated Ripple Current610 mArms
ESR Frequency100 kHz
Diameter D (mm)6.3
Height L (mm)7.7
Terminal Pitch (mm)1.8±0.2
Min. Package Qty900
Tolerance-20%~+20%
Leakage Current (µA) Max82.5
Dissipation Factor (tanδ max.)14
Terminal Plating Material镀锡
Weight (g)0.1
Dissipation Factor Frequency (Hz)120
Remarks—
Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number

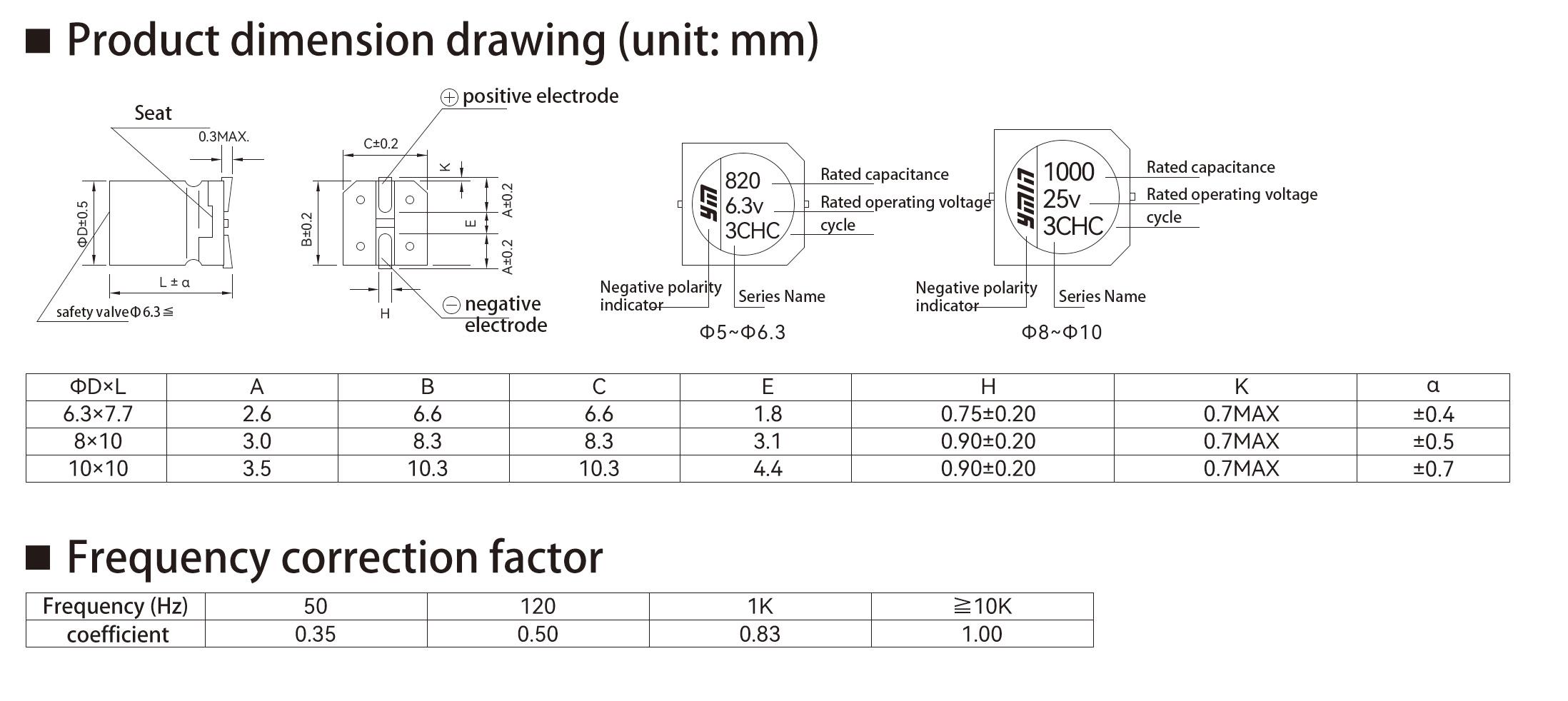

Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Diameter (D) | D | 6.3 |
| Height (L) | L | 7.7 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 610 mArms | — | 0.24 Ω | 100 kHz |
Design Tools & Resources
Lifetime Calculator
Online lifetime estimation
3D-CAD Models
STEP / IGES
RoHS/REACH
Compliance certificates
Product PDF
Product datasheet
Cross Reference
The current YMIN part can replace these competitor parts. Verify specifications and application conditions before selection.
Loading cross references…
For replacement options of discontinued models, please contact technical support.
