Polymer Solid Aluminum Electrolytic Capacitor

NPLC1101A471MJTM

Name: NPLC1101A471MJTM NPL 470µF 10V
Brand: YMIN
SKU: NPLC1101A471MF

Mass ProductionNPL Series · Radial Lead

High CapacitanceLow ESRHigh Ripple Current WithstandLow Leakage CurrentHigh ReliabilityExtra Long Service LifeWide Temperature Range

Rated Voltage (V)

10 V

Nominal Capacitance

470 µF

Operating Temp

-55 ~ 105 ℃

ESR (max)

9 mΩ

Rated Lifetime

5000 h

Package Size

ø6.3 × 11 mm

Online Store

Min. Order Qty:1000

Package:Radial Lead

No online store link available for this part number

Detailed Specifications

Capacitor CategoryPolymer Solid Aluminum Electrolytic Capacitor

ShapeRadial Lead

Part NumberNPLC1101A471MJTM

SeriesNPL

Lifecycle StatusMass Production

Rated Voltage (V)10

Nominal Capacitance470 µF

ESR (max.)9 mΩ

PolarityPolarized

Min Operating Temp (°C)-55

Max Operating Temp (°C)105

Rated Lifetime (Hours)5000

Rated Ripple Current5400 mArms

ESR Frequency100 kHz

Diameter D (mm)6.3

Height L (mm)11

Terminal Pitch (mm)2.5

Min. Package Qty1000

Tolerance-20%~+20%

Leakage Current (µA) Max940

Dissipation Factor (tanδ max.)8

Terminal Plating MaterialIron Core, Copper Plated, Tin Coated

Weight (g)0.1

Remarks—

Product Dimensions & Electrical Parameters

Actual dimensions and electrical parameters for this part number

Dimensions (unit: mm)

Dimension	Symbol	Value (mm)
Diameter (D)	D	6.3
Height (L)	L	11

Electrical Parameters

Rated Ripple Current	Ripple Test Condition	ESR	ESR Frequency
5400 mArms	—	9 mΩ	100 kHz

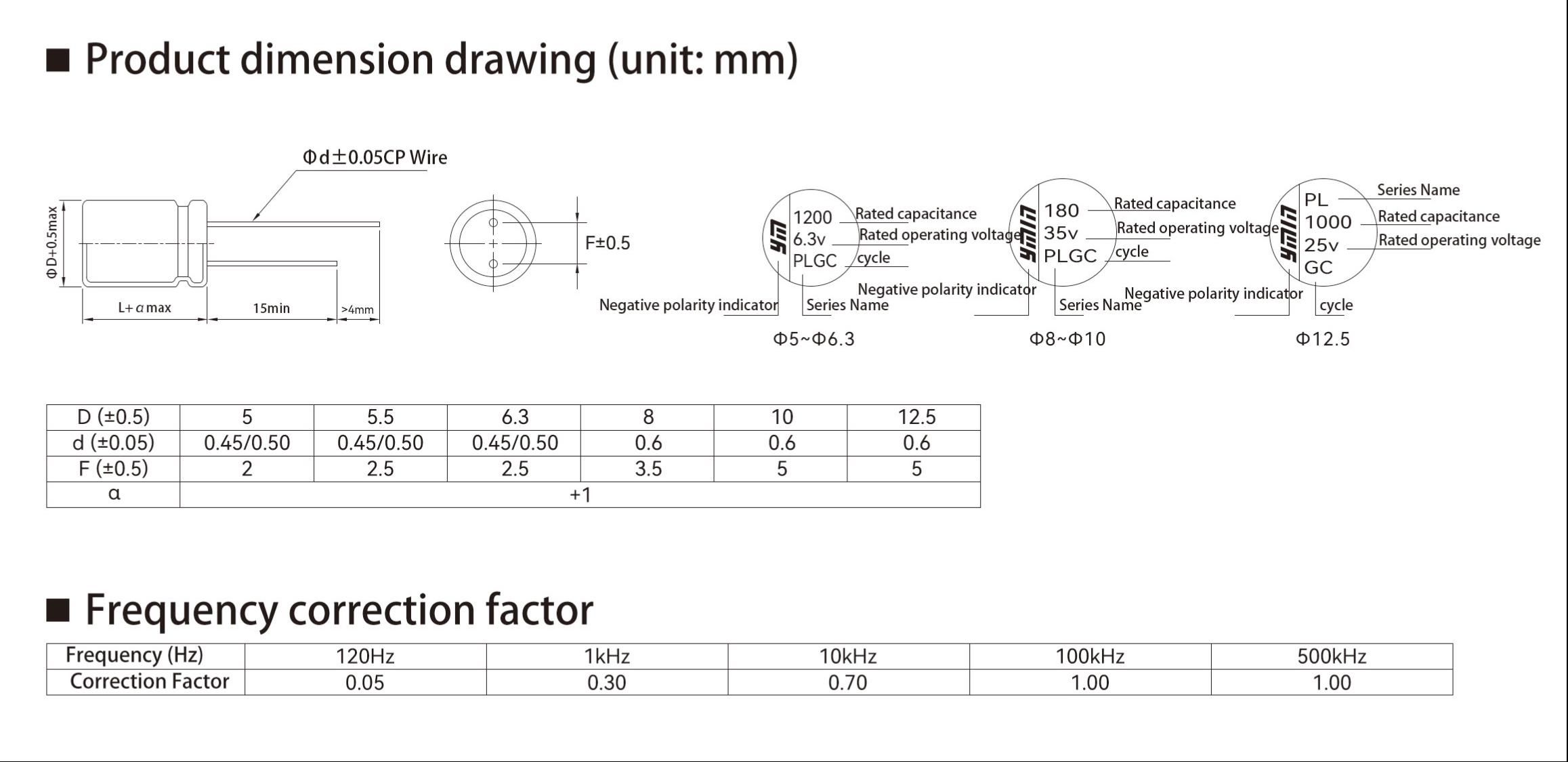

NPL series dimensions and rated ripple-current conditions — NPL series technical drawing shared by products in the same series. Refer to the official datasheet for dimensions, electrical conditions and correction factors.
