Stacked Polymer Solid Aluminum Electrolytic Capacitors
MPD330M1CD19040R
Mass ProductionMPD19 Series · SMD
Polarizedthin profilelaminated structurelow ESRhigh ripple currentwide temperature rangehigh capacitanceRoHS compliant
Rated Voltage (V)
16 V
Nominal Capacitance
33 µF
Operating Temp
-55 ~ 105 ℃
ESR (max)
40 mΩ
Rated Lifetime
2000 h
Package Size
L 7.3 × W 4.3 × H 1.9 mm
Online Store
Min. Order Qty:3500
Package:SMD
No online store link available for this part number
Detailed Specifications
Capacitor CategoryStacked Polymer Solid Aluminum Electrolytic Capacitors
ShapeSMD
Part NumberMPD330M1CD19040R
SeriesMPD19
Lifecycle StatusMass Production
Rated Voltage (V)16
Nominal Capacitance33 µF
ESR (max.)40 mΩ
PolarityPolarized
Min Operating Temp (°C)-55
Max Operating Temp (°C)105
Rated Lifetime (Hours)2000
Rated Ripple Current3200 mArms
ESR Frequency100 kHz
Length L (mm)7.3
Terminal Pitch (mm)6
Min. Package Qty3500
Tolerance-20%~+20%
Leakage Current (µA) Max52.8
Dissipation Factor (tanδ max.)6
Terminal Plating MaterialNi/Sn
Weight (g)0.13
Width W (mm)4.3
Height H (mm)1.9
Remarks—
Product Dimensions & Electrical Parameters
Actual dimensions and electrical parameters for this part number

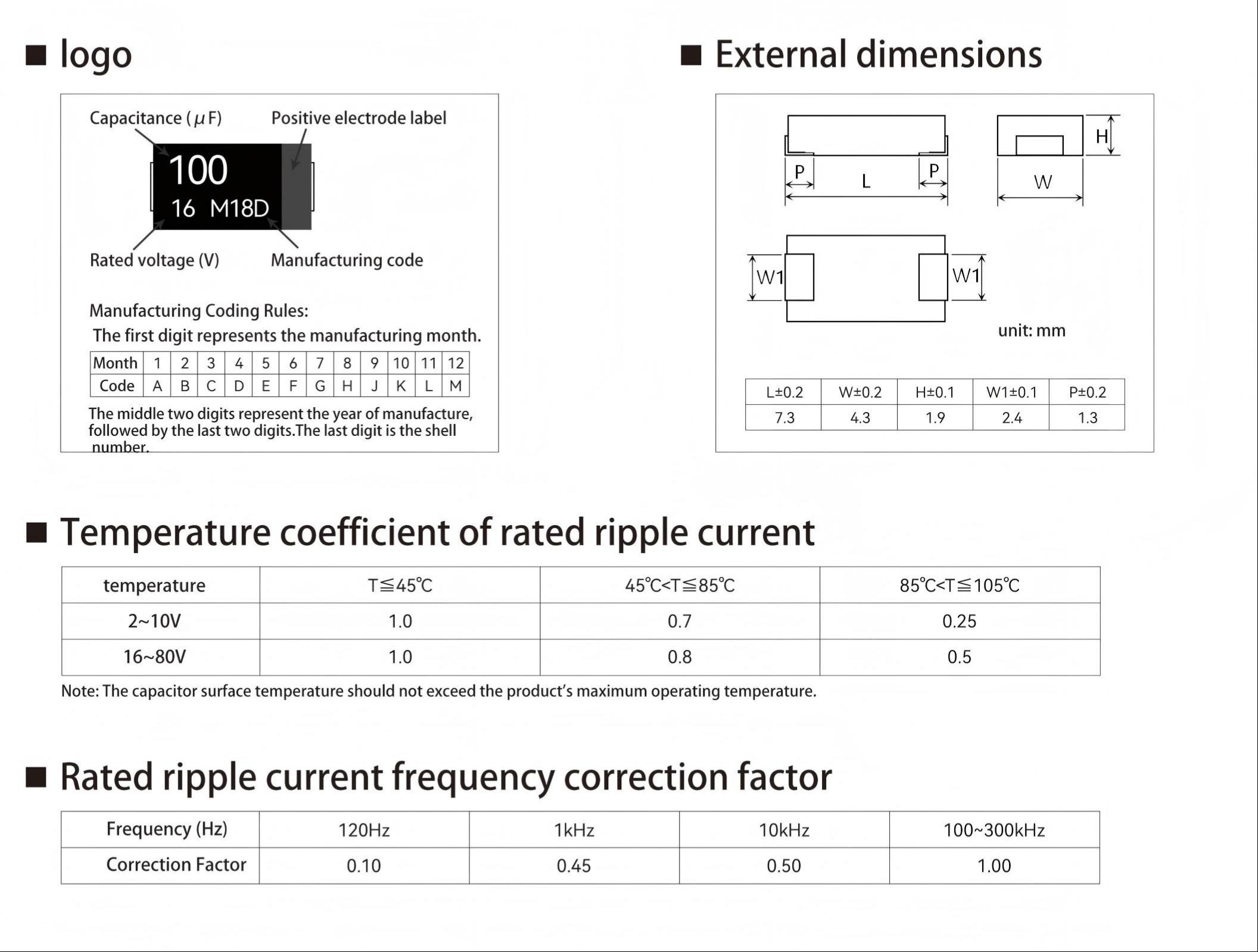

Dimensions (unit: mm)
| Dimension | Symbol | Value (mm) |
|---|---|---|
| Length (L) | L | 7.3 |
| Width (W) | W | 4.3 |
| Height (H) | H | 1.9 |
Electrical Parameters
| Rated Ripple Current | Ripple Test Condition | ESR | ESR Frequency |
|---|---|---|---|
| 3200 mArms | — | 40 mΩ | 100 kHz |
