A”smart automation warehouse” enables complete visibility, reduces complexity, improves operational performance, increases the productivity process in the industry by operating smart machines including robots, AGVs, RGVs, carton shuttle, forklift etc.,
These devices are typically powered by batteries or cables or trolley wire, which are required charging regularly, a place to charge as well as maintenance. And for outdoor systems can facing the challenging of high temperature conditions while indoor freezer warehouse lead batteries failing in operating (MAX. Operating temperature for batteries is -20℃).

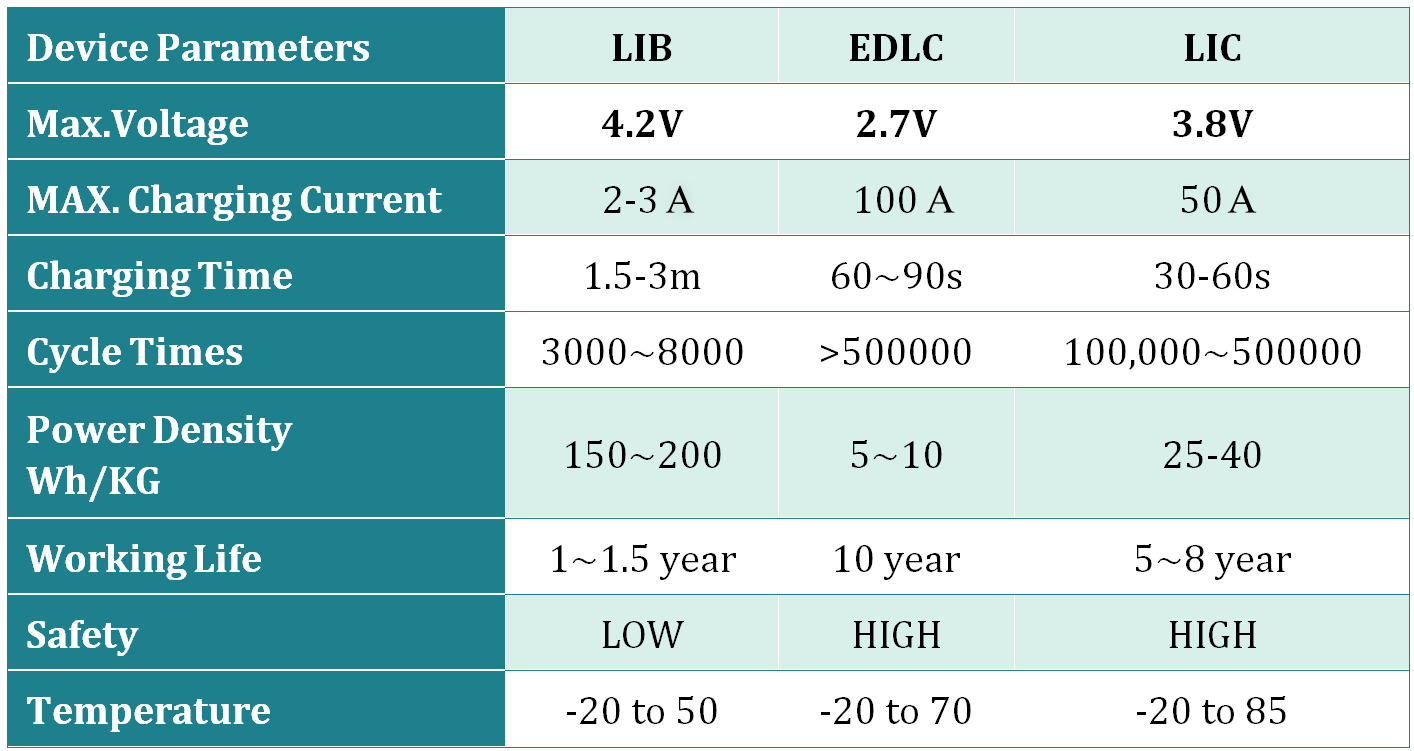

Supercapacitors are high reliability, high power, ultra-high capacitance energy storage devices utilizing electric double layer capacitor (EDLC) construction. An Supercapacitor modular is assembled with a numbers of individual EDLC/LIC cells in parallel or series resulting a higher voltage or larger capacitance with millions of charge and discharge cycles. So an supercapacitor modular pack can directly replace the battery pack in this machines.
Longer life time-Charge and discharge 30000 times and provides 10+ years under 4.2v;
High power density, it can reach up to 60wh/kg, which is 10times than EDLC and 4 times than LIC.
24/7 operation, No need for replacement or maintenance.
Ultracapacitor is more save than battery, no explore or burn, can be used in multiple occasions
RGV shuttles can be charged in seconds;
Suitable for AGVs, RGVs, forklifts, shuttles;
YMIN recently launched two type of LIC modules for AGV application:
LIC modular SLM 60V25F
Surge voltage:68.4V
Charge current:30A
MAX. Charge current:40A
Temperature: -40℃~+65℃
Life cycle:>500,000 times
Size: 425*72*78mm(±2mm)
LIC modular SLM 60V27F
Surge voltage:71.5V
Charge current:30A
MAX. Charge current:40A
Temperature: -40℃~+65℃
Life cycle:>500,000 times
Size: 280*144*78mm(±2mm)
YMIN EDLC modular and LIC modular are popularized and applied in buses, coaches, subway, AGV, wind pitch control, elevators, port machinery and so on. It has big potential market and it is also considered as a new eco-energy solution to replace LIB system.
Ps: We can customize based on your requirement: Voltage, power, size, shape, temperature etc., according to your needs. Pls feel free to contact us if you have any question.
